MCT8315Z0HRRYR

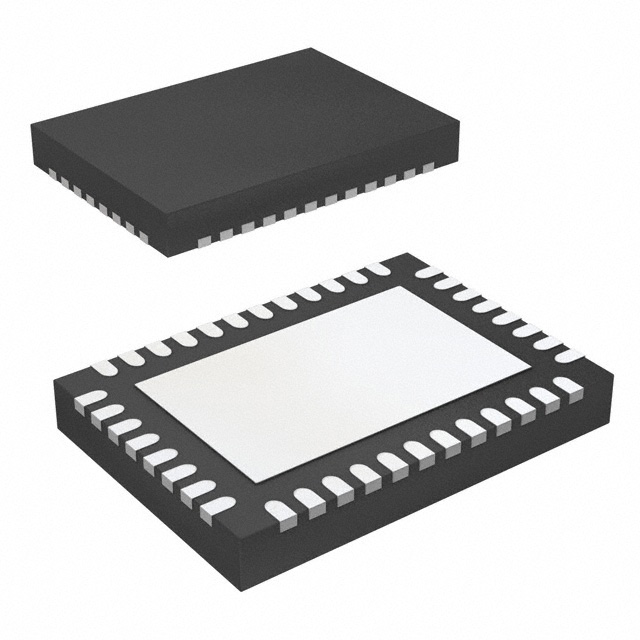

lmages are for reference only.MCT8315Z0HRRYR
40-V MAX, 4-A PEAK, SENSORED TRA
Datasheet32-WFQFN Exposed Pad
12,521 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Multiphase Motor Driver NMOS 32-WQFN (6x4)
MCT8315Z0HRRYR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | - |
| Technology | NMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 4A |
| Voltage - Supply | 4.5V ~ 35V |
| Voltage - Load | 4.5V ~ 35V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-WQFN (6x4) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

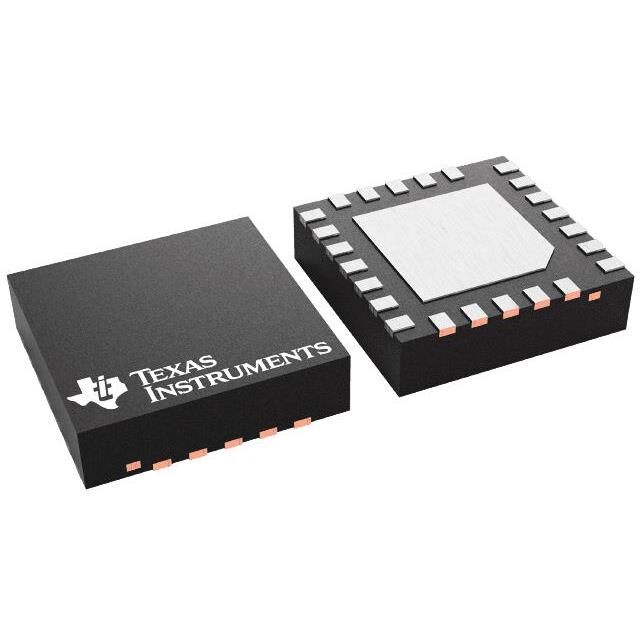

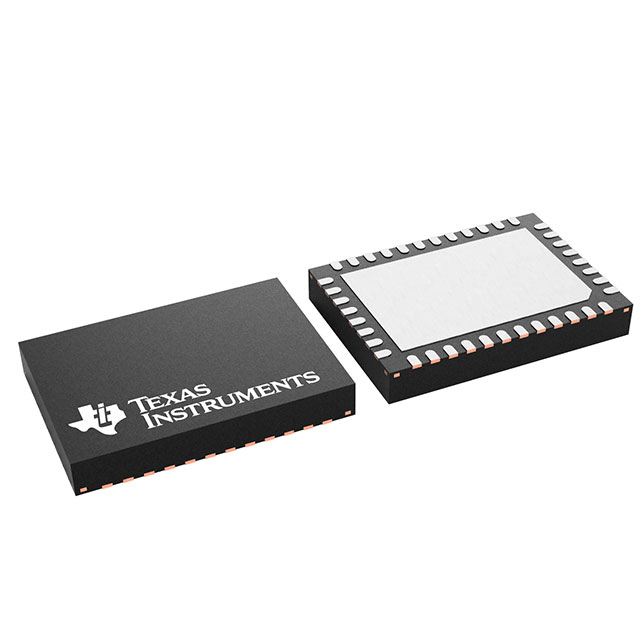

| Part Number | MCT8315Z0HRRYR | MCT8314Z0HRRWR | MCT8314Z0HRRWR | MCT8315A1VRGFR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 40-V MAX, 4-A PEAK, SENSORED TRA | 40V MAX, 1.5A PEAK, SENSORED-TRA | 40V MAX, 1.5A PEAK, SENSORED-TRA | 40-V MAX, 4-A PEAK, SENSORLESS T |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
