MCU0805MD7504BP500

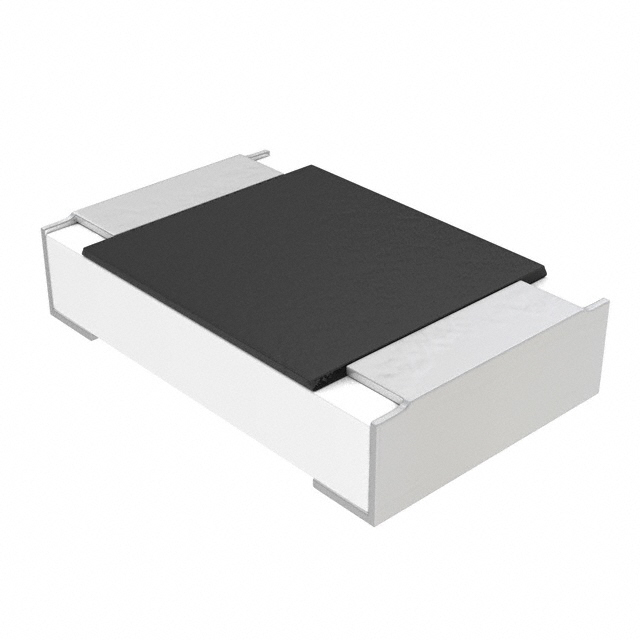

lmages are for reference only.MCU0805MD7504BP500
RES 7.5M OHM 0.1% 1/8W 0805
Datasheet0805 (2012 Metric)
99,673 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.5 MOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
MCU0805MD7504BP500
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | MCU AT - Precision |
| Resistance | 7.5 MOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.125W, 1/8W |
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.024" (0.62mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | MCU0805 |
| Product Attribute |  |
|
 |
 |
| Part Number | MCU0805MD7502BP100 | MCU0805MC1002FP500 | MCU0805MC1003FP500 | MCU0805MC1004FP500 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Dale | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 75K OHM 0.1% 1/8W 0805 | RES 10K OHM 1% 1/8W 0805 | RES 100K OHM 1% 1/8W 0805 | RES 1M OHM 1% 1/8W 0805 |
| Series | Vishay Beyschlag/Draloric/BC Components | |||
| Packaging | Tape & Reel (TR) |
