Product CatalogPart Number
MDCC-0307
Manufacturer
Astrodyne TDIDescription
AC/DC CONVERTER +/-15V 30W
Datasheet
DatasheetPackage
-
In Stock
47,069 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MDCC-0307
MDCC-0307
lmages are for reference only.Payment Methods
Delivery Services
Enclosed AC DC Converters 2 Output 15V -15V 90 ~ 264 VAC Input
Quick Inquiry
MDCC-0307
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | Astrodyne TDI |
| Series | MCA-30 (30W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | - |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 3 kV |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 50°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.76" L x 2.56" W x 1.00" H (120.9mm x 65.0mm x 25.4mm) |
| Approval Agency | CE, cURus |
| Minimum Load Required | - |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 30W |
| Features | Universal Input |
| Standard Number | 60601-1; 60950-1 |
| Base Product Number | - |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

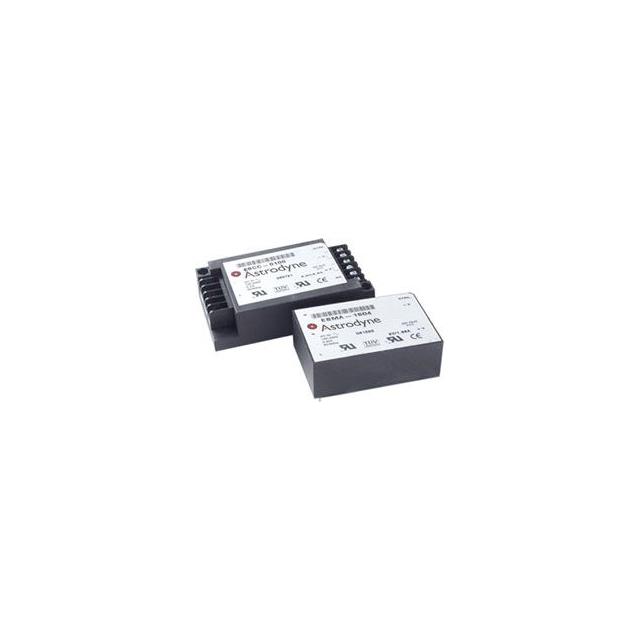

| Part Number | MDCC-0306 | MDCC-0308 | MDCC-0107 | MDCC-0108 |
| Manufacturer | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI | Astrodyne TDI |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | AC/DC CONVERTER +/-12V 30W | AC/DC CONVERTER 5V 12V 30W | AC/DC CONVERTER +/-15V 10W | AC/DC CONVERTER 5V 12V 10W |
| Series | MCA-30 (30W) | MCA-30 (30W) | MCA-10 (10W) | MCA-10 (10W) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
