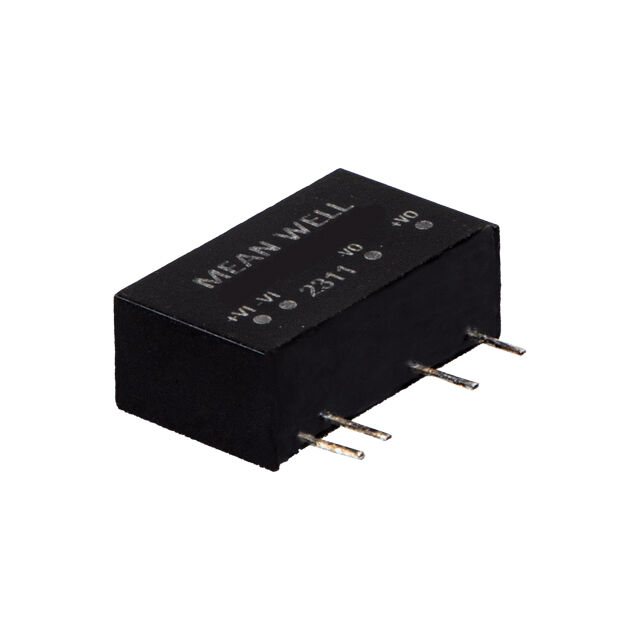

MDS01M-12N
lmages are for reference only.MDS01M-12N
1W;I/P:12VDC;O/P:12VDC@84MA;SIP
Datasheet7-SIP Module, 4 Leads
70,501 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 84mA 10.8V - 13.2V Input
MDS01M-12N
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | MEAN WELL USA Inc. |
| Series | MDS01-N (1W) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 84mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial), Medical |
| Features | - |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 81% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.78" L x 0.28" W x 0.45" H (19.7mm x 7.1mm x 11.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, EAC, UKCA |
| Standard Number | 60601-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 6 kV |
| Product Attribute |  |
 |
 |
 |

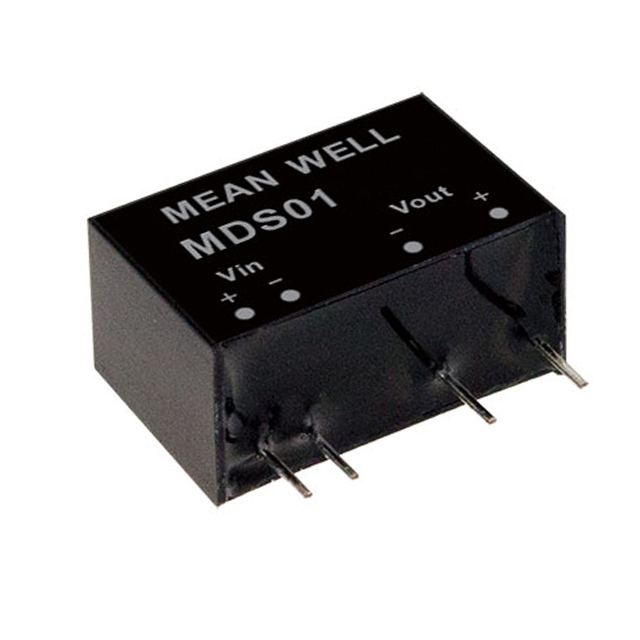

| Part Number | MDS01M-03N | MDS01M-05 | MDS01M-05N | MDS01M-15 |
| Manufacturer | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1W;I/P:12VDC;O/P:3.3VDC@303MA;SI | DC DC CONVERTER 5V 1W | 1W;I/P:12VDC;O/P:5VDC@200MA;SIP | DC DC CONVERTER 15V 1W |
| Series | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| Packaging | Bulk | Tube | Bulk | Tube |
