Product CatalogPart Number
ME3220-472MLC
Manufacturer
CoilcraftDescription
FIXED IND 4.7UH 1.3A 190MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
42,367 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ME3220-472MLC
ME3220-472MLC
lmages are for reference only.Payment Methods
Delivery Services
4.7 µH Unshielded Wirewound Inductor 1.3 A 190mOhm Max Nonstandard
Quick Inquiry
ME3220-472MLC
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | ME3220 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.3 A |
| Current - Saturation (Isat) | 1.5A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 190mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 58.2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.110" W (3.20mm x 2.80mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | ME3220-102MLC | ME3220-103KLC | ME3220-104KLC | ME3220-123KLC |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ||||
| Description | FIXED IND 1UH 2.6A 58MOHM SM | FIXED IND 10UH 870MA 434MOHM SM | FIXED IND 100UH 320MA 3.5OHM SM | FIXED IND 12UH 840MA 470MOHM SM |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
ME3220-102MLC
Coilcraft
ME3220-103KLC
Coilcraft
ME3220-104KLC
Coilcraft

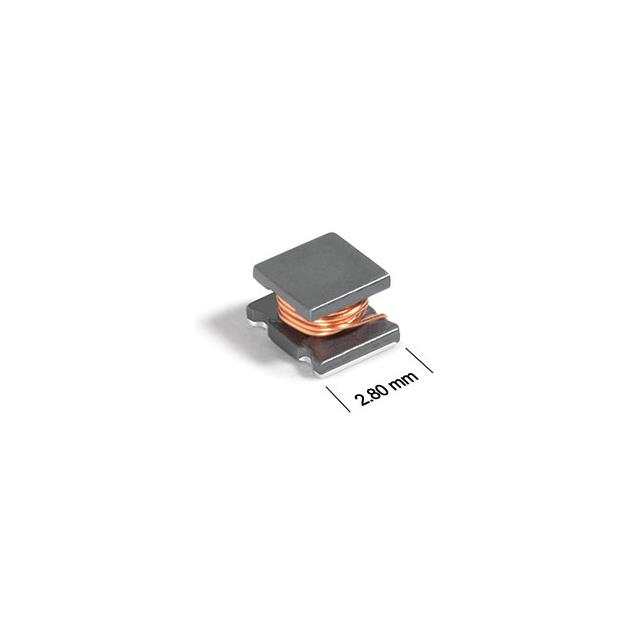

ME3220-123KLC
