MEF1S1205SPC
lmages are for reference only.MEF1S1205SPC
DC DC CONVERTER 5V 1W
Datasheet7-SIP Module, 4 Leads
86,963 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 200mA 11.4V - 12.6V Input
MEF1S1205SPC
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | MEF1 (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11.4V |
| Voltage - Input (Max) | 12.6V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 73.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MEF1S12 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
 |
 |

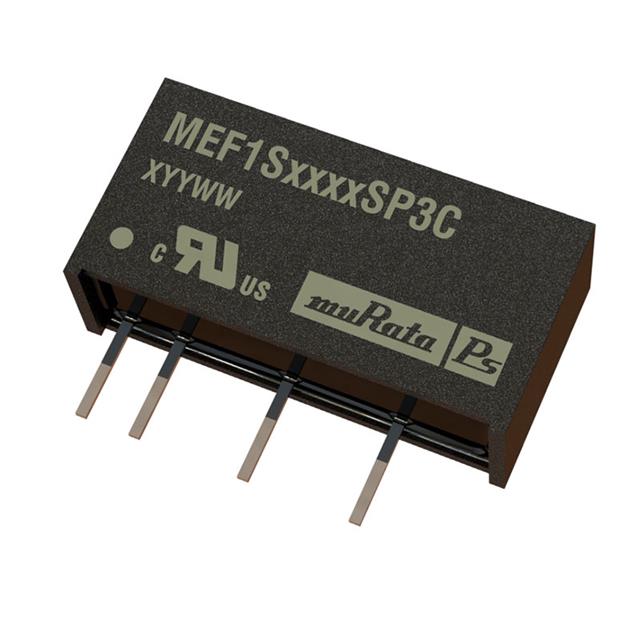

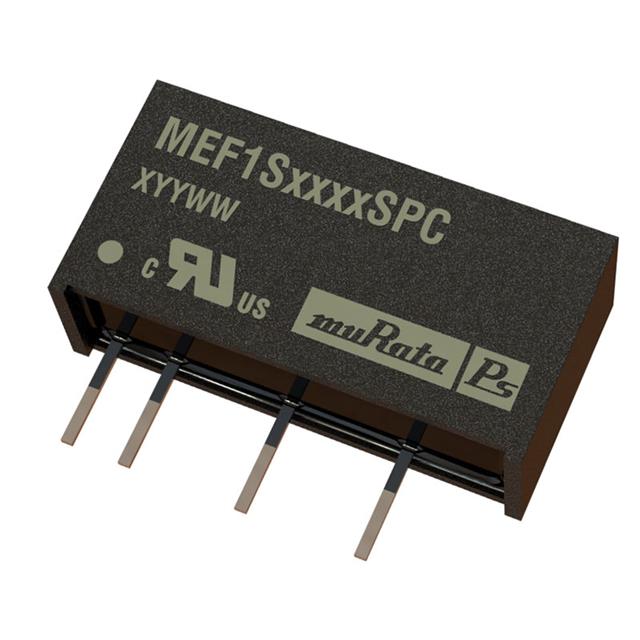

| Part Number | MEF1S1203SP3C | MEF1S1203SPC | MEF1S1205SP3C | ME005A |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | OmniOn Power™ |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | DC DC CONVERTER 3.3V 1W | DC DC CONVERTER 3.3V 1W | DC DC CONVERTER 5V 1W | DC DC CONVERTER 5V 5W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | OmniOn Power™ |
| Packaging | Tube | Tube | Tube | Bulk |
