MF-USHT020KX-2

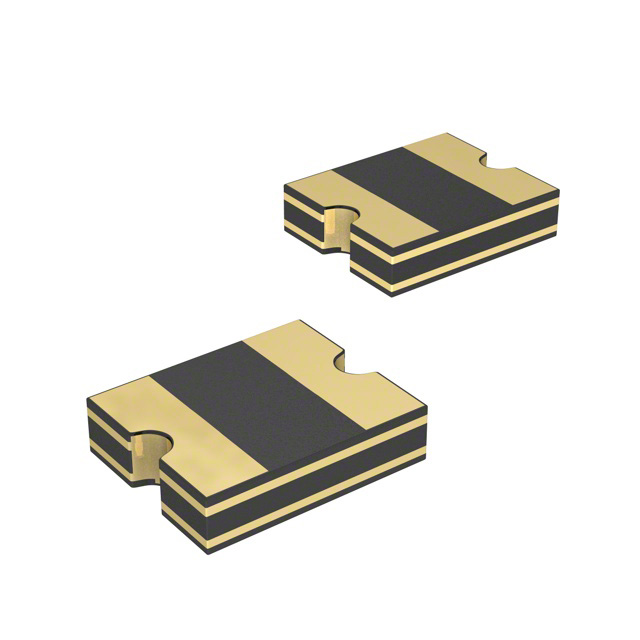

lmages are for reference only.MF-USHT020KX-2
PTC RESET FUSE 30V 200MA 1210
Datasheet1210 (3225 Metric), Concave
93,107 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 30V 200 mA Ih Surface Mount 1210 (3225 Metric), Concave
MF-USHT020KX-2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Bourns Inc. |
| Series | Multifuse®, MF-USHT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 1 A |
| Current - Max | 20 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.101" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
| Approval Agency | cURus |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 600 mOhms |
| Resistance - Post Trip (R1) (Max) | 5 Ohms |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MF-USHT010KX-2 | MF-USHT016KX-2 | MF-USHT035KX-2 | MF-USHT050KX-2 |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 30V 100MA 1210 | PTC RESET FUSE 30V 160MA 1210 | PTC RESET FUSE 30V 350MA 1210 | PTC RESET FUSE 30V 500MA 1210 |
| Series | Multifuse®, MF-USHT | Multifuse®, MF-USHT | Multifuse®, MF-USHT | Multifuse®, MF-USHT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
