MGA-631P8-BLKG

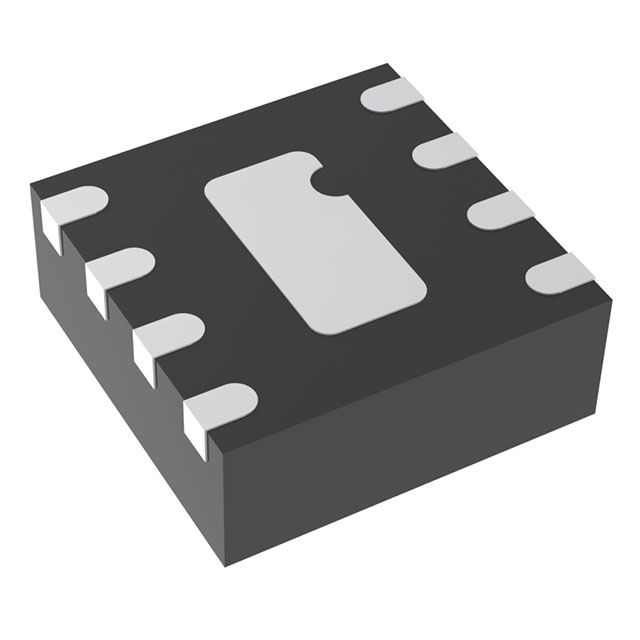

lmages are for reference only.MGA-631P8-BLKG
IC AMP CDMA 400MHZ-1.5GHZ 42CSP
Datasheet8-WFDFN Exposed Pad
54,826 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC CDMA, GPS, GSM, ISM 400MHz ~ 1.5GHz 42-CSP (5.0x4.6)
MGA-631P8-BLKG
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Bag |
| RoHS Status | |
| Frequency | 400MHz ~ 1.5GHz |
| P1dB | 17.5dBm |
| Gain | 17.5dB |
| Noise Figure | 0.53dB |
| RF Type | CDMA, GPS, GSM, ISM |
| Voltage - Supply | 4V |
| Current - Supply | 54mA |
| Test Frequency | 900MHz |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 42-CSP (5.0x4.6) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MGA-631P8-TR1G | MGA-631P8-TR2G | MGA-12516-BLKG | MGA-12516-TR1G |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ||||
| Description | IC AMP CDMA 400MHZ-1.5GHZ 42CSP | IC AMP CDMA 400MHZ-1.5GHZ 8TSLP | IC RF AMP 16QFN | IC RF AMP 16QFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bag | Tape & Reel (TR) |
