Product CatalogPart Number
MGFS102405
Manufacturer
Cosel USA, Inc.Description
DC DC CONVERTER 5V 10W
Datasheet
DatasheetPackage
7-SIP Module
In Stock
92,979 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MGFS102405
MGFS102405
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 2A 9V - 36V Input
Quick Inquiry
MGFS102405
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cosel USA, Inc. |
| Series | MGFS (10W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | MGFS102412 | MGFS102415 | MGFS10243R3 | MGFS10243R3 |
| Manufacturer | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 12V 11W | DC DC CONVERTER 15V 11W | DC DC CONVERTER 3.3V 8.6W | DC DC CONVERTER 3.3V 8.6W |
| Series | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. | Cosel USA, Inc. |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
MGFS102412
Cosel USA, Inc.
MGFS102415
Cosel USA, Inc.
MGFS10243R3
Cosel USA, Inc.
MGFS10243R3
Cosel USA, Inc.
MGFS104805
Cosel USA, Inc.
MGFS104812
Cosel USA, Inc.
MGFS104815
Cosel USA, Inc.
MGFS10483R3
Cosel USA, Inc.
MGFS152405
Cosel USA, Inc.
MGFS152405-G
Cosel USA, Inc.
MGFS152405-R
Cosel USA, Inc.
MGFS152412
Cosel USA, Inc.
MGFS152412-R
Cosel USA, Inc.
MGFS152415
Cosel USA, Inc.
MGFS152415-R
Cosel USA, Inc.

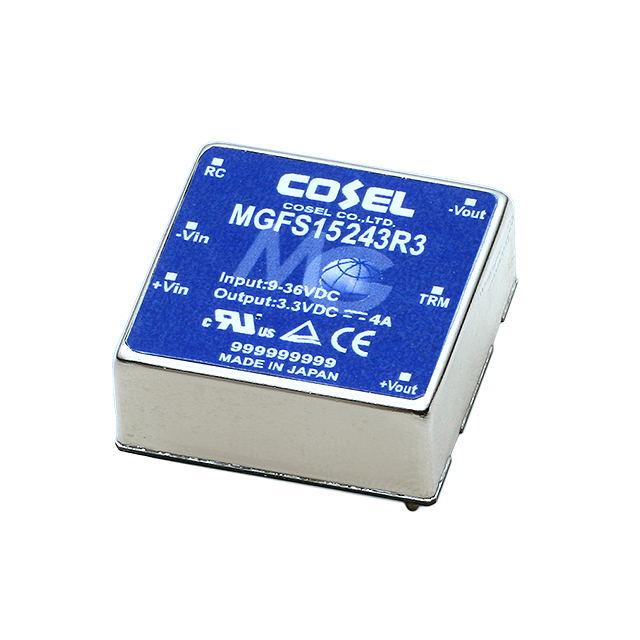

MGFS15243R3
