Product CatalogPart Number
MHDAS2M030YCE51
Manufacturer
Amphenol SocapexDescription
MICRO HDAS 30 MALE RIGHT ANGLE P
Datasheet
DatasheetPackage
-
In Stock
14,485 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MHDAS2M030YCE51
MHDAS2M030YCE51
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Through Hole, Right Angle 30 position 0.050" (1.27mm)
Quick Inquiry
MHDAS2M030YCE51
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol Socapex |
| Series | Micro HDAS |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Length - Mating | 0.128" (3.25mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Overall Contact Length | - |
| Insulation Height | 0.197" (5.00mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Features | Mating Flange, Mounting Flange, Polarizing Key |
| Operating Temperature | -65°C ~ 150°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | 750V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | MHDAS2M |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

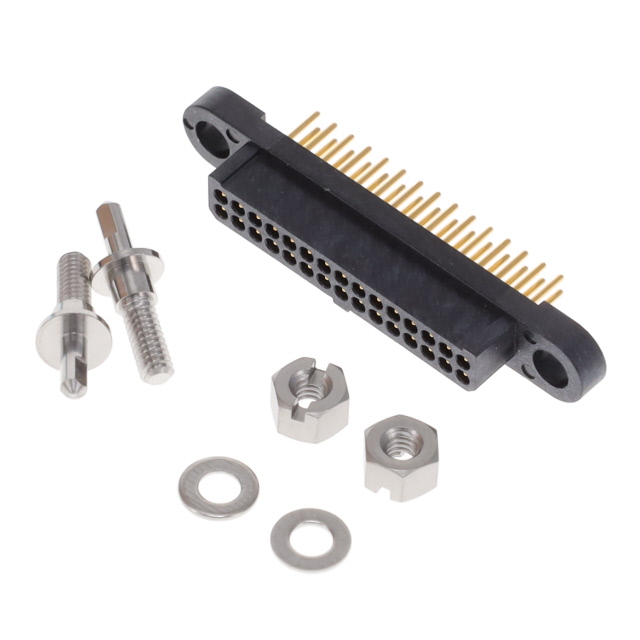

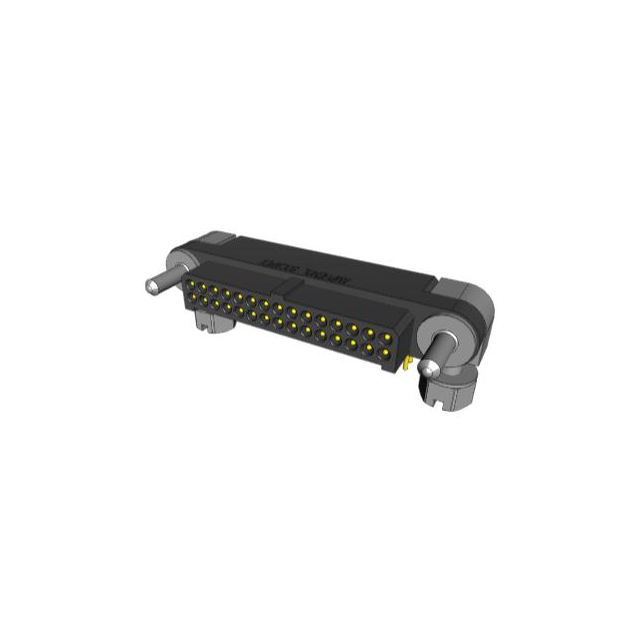

| Part Number | MHDAS2M030YCE11 | MHDAS2M030YCE61 | MHDAS2M030YDE10 | MHDAS2M030YDE60 |
| Manufacturer | Amphenol Socapex | Amphenol Socapex | Amphenol Socapex | Amphenol Socapex |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | MICRO HDAS 30 MALE RIGHT ANGLE P | MICRO HDAS 30 MALE RIGHT ANGLE P | MICRO HDAS 30 MALE STRAIGHT PC T | MICRO HDAS 30 MALE STRAIGHT PC T |
| Series | Micro HDAS | Micro HDAS | Micro HDAS | Micro HDAS |
| Packaging | Tray | Tray | Tray | Tray |
