MHQ0603P2N1BT000

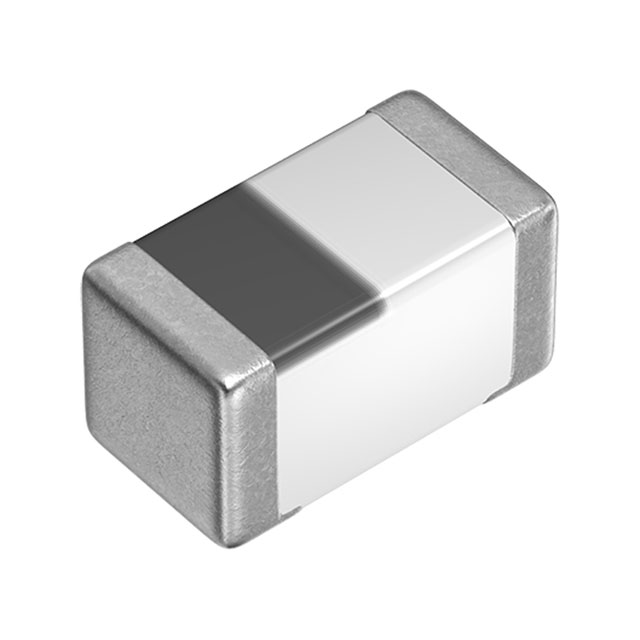

lmages are for reference only.MHQ0603P2N1BT000
FIXED IND 2.1NH 700MA 150MOHM SM
Datasheet0201 (0603 Metric)
80,338 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.1 nH Unshielded Multilayer Inductor 700 mA 150mOhm Max 0201 (0603 Metric)
MHQ0603P2N1BT000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | MHQ-P |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic, Non-Magnetic |
| Inductance | 2.1 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 700 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 150mOhm Max |
| Q @ Freq | 16 @ 500MHz |
| Frequency - Self Resonant | 10GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.026" L x 0.014" W (0.65mm x 0.35mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MHQ0603P2N1BTD25 | MHQ0603P2N0BT000 | MHQ0603P2N0BTD25 | MHQ0603P2N0CT000 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.1NH 700MA 150MOHM SM | FIXED IND 2NH 700MA 120 MOHM SMD | FIXED IND 2NH 700MA 120MOHM SMD | FIXED IND 2NH 700MA 120 MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
