MHQ1005P9N1HTD25

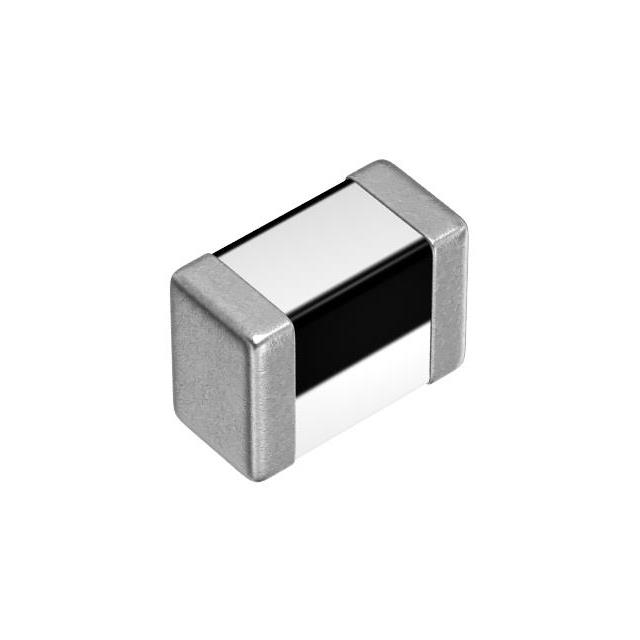

lmages are for reference only.MHQ1005P9N1HTD25
FIXED IND 9.1NH 550MA 170MOHM SM
Datasheet0402 (1005 Metric)
99,400 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.1 nH Unshielded Multilayer Inductor 550 mA 170mOhm Max 0402 (1005 Metric)
MHQ1005P9N1HTD25
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | MHQ-P |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic, Non-Magnetic |
| Inductance | 9.1 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 550 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | 23 @ 250MHz |
| Frequency - Self Resonant | 3.4GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.024" W (1.00mm x 0.60mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MHQ1005P9N1HT000 | MHQ1005P9N1GT000 | MHQ1005P9N1GTD25 | MHQ1005P9N1JT |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 9.1NH 550MA 170MOHM SM | FIXED IND 9.1NH 550MA 170MOHM SM | FIXED IND 9.1NH 550MA 170MOHM SM | FIXED IND 9.1NH 550MA 170MOHM SM |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
