Product CatalogPart Number
MHS222GRA
Manufacturer
TE Connectivity ALCOSWITCH SwitchesDescription
SWITCH SLIDE DPDT 0.4VA 20V
Datasheet
DatasheetPackage
-
In Stock
60,022 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MHS222GRA
MHS222GRA
lmages are for reference only.Payment Methods
Delivery Services
Slide Switch DPDT Through Hole, Right Angle
Quick Inquiry
MHS222GRA
Specifications
| Category | Switches - Slide Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | MHS |
| Packaging | Bulk |
| RoHS Status | |
| Circuit | DPDT |
| Contact Timing | Shorting (MBB) |
| Switch Function | On-On |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Actuator Type | Standard |
| Actuator Length | 4.50mm |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Features | Epoxy Sealed Terminals |
| Operating Temperature | -20°C ~ 85°C |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Switch Travel | 4.00mm |
| Mechanical Life | 15,000 Cycles |
| Electrical Life | 15,000 Cycles |
| Operating Force | 600gf |
| Base Product Number | MHS2 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

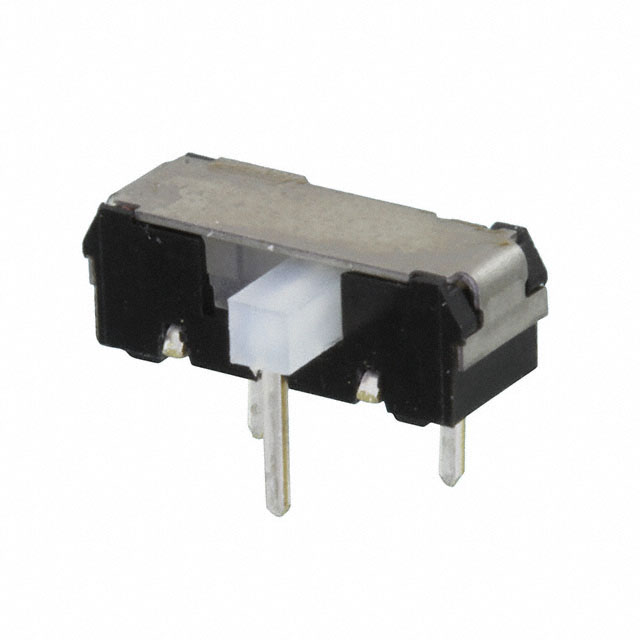

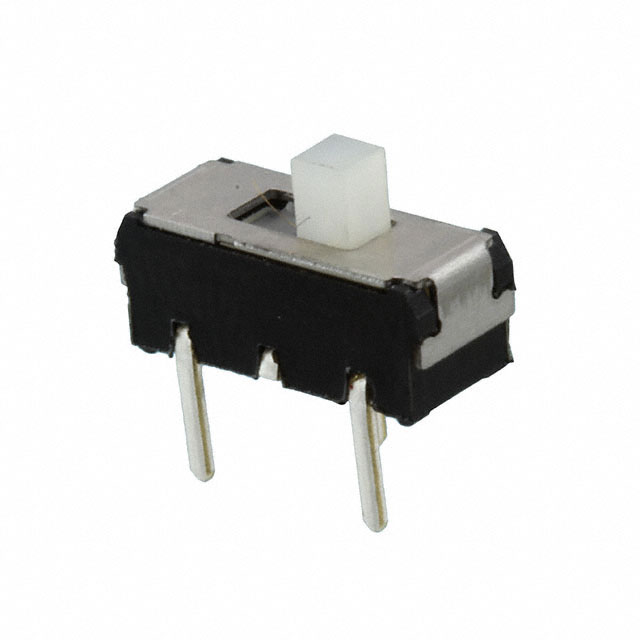

| Part Number | MHS222 | MHS222G | MHS121 | MHS122 |
| Manufacturer | Nidec Components Corporation | TE Connectivity ALCOSWITCH Switches | Nidec Components Corporation | Nidec Components Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | SWITCH SLIDE DPDT 200MA 12V | SWITCH SLIDE DPDT 0.4VA 20V | SWITCH SLIDE SPDT 200MA 12V | SWITCH SLIDE SPDT 200MA 12V |
| Series | MHS | MHS | MHS | MHS |
| Packaging | Bulk | Bulk | Bulk | Bulk |
