MIC2507BM

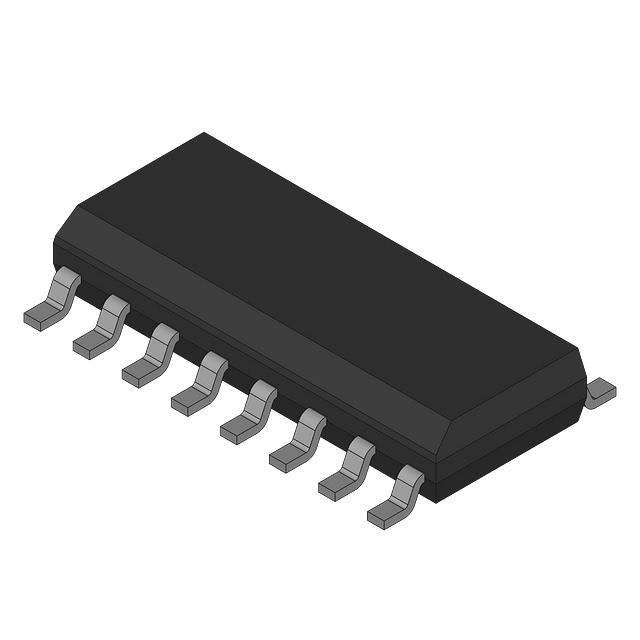

lmages are for reference only.MIC2507BM
QUAD INTEGRATED HIGH-SIDE SWITCH
Datasheet14-SOIC (0.154", 3.90mm Width)
42,764 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:1 N-Channel 1A 14-SOP
MIC2507BM
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 7.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 120mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | MIC2507 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIC2507BM TR | MIC2505-1BM | MIC2505-1BM-TR | MIC2505-1BN |
| Manufacturer | Micrel Inc. | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | Not applicable | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | MIC2507BM TR | IC PWR SWITCH N-CHAN 1:1 8SOIC | IC PWR SWITCH N-CHAN 1:1 8SOIC | IC PWR SWITCH N-CHANNEL 1:1 8DIP |
| Series | Micrel Inc. | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Tube | Tape & Reel (TR) | Bulk |
