Product CatalogPart Number
MIC29301-12BT
Manufacturer
Micrel Inc.Description
IC REG LINEAR HIGH CURRENT LDO
Datasheet
DatasheetPackage
TO-220-5
In Stock
91,940 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MIC29301-12BT
MIC29301-12BT
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-220-5
Quick Inquiry
MIC29301-12BT
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 35 mA |
| PSRR | - |
| Control Features | Enable, Error Flag |
| Protection Features | Load Dump, Over Current, Over Temperature, Reverse Polarity, Transient Voltage |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| Base Product Number | - |
| Current - Supply (Max) | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

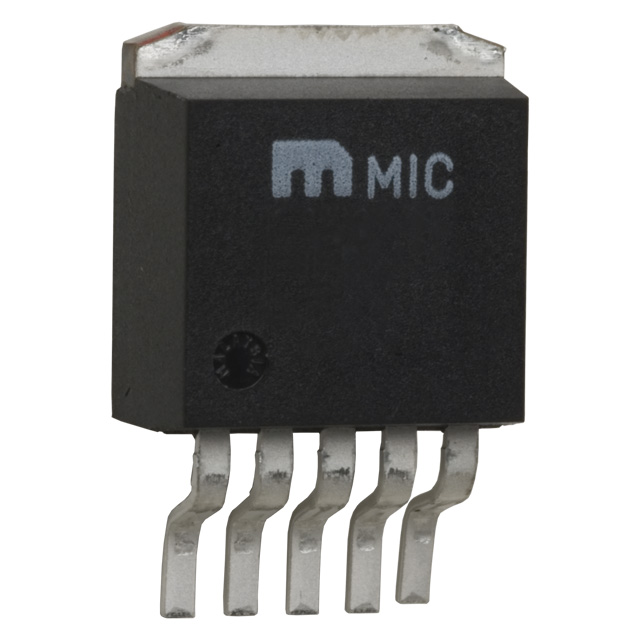

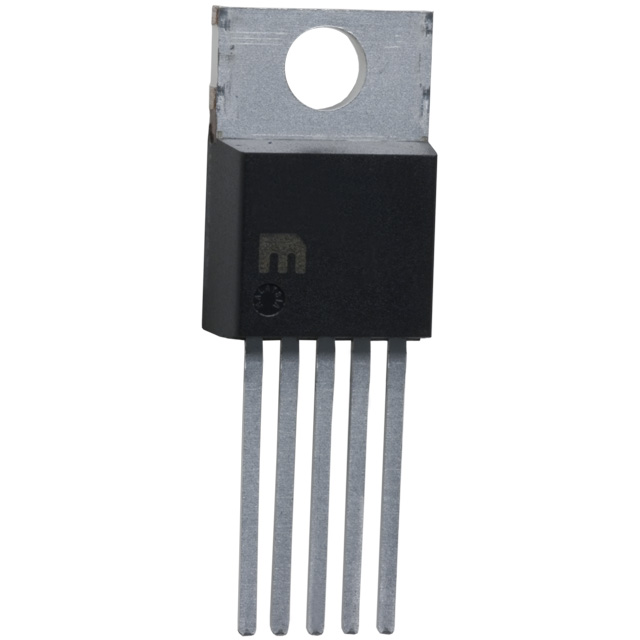

| Part Number | MIC29301-12BU | MIC29301-12BU | MIC29301-12BU TR | MIC29301-12WT |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 12V 3A TO263-5 | IC REG LINEAR 12V 3A TO263-5 | IC REG LINEAR 12V 3A TO263-5 | IC REG LINEAR 12V 3A TO220-5 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tube |
