MIC4120YME
lmages are for reference only.MIC4120YME
IC GATE DRVR LOW-SIDE 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
79,045 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Low-Side Gate Driver IC Non-Inverting 8-SOIC-EP
MIC4120YME
| Category | Integrated Circuits (ICs) - Power Management PMIC - Gate Drivers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 13ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
| Base Product Number | MIC4120 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

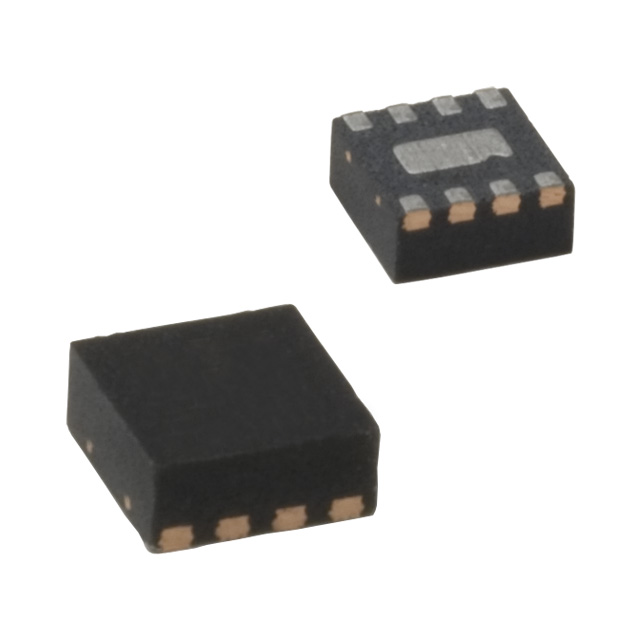

| Part Number | MIC4120YME-TR | MIC4120YML-TR | MIC4100BM | MIC4100BMTR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | IC GATE DRVR LOW-SIDE 8SOIC | IC GATE DRVR LOW-SIDE 8MLF | IC GATE DRVR HALF-BRIDGE 8SOIC | IC GATE DRVR HALF-BRIDGE 8SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
