MIC5259-2.8YML

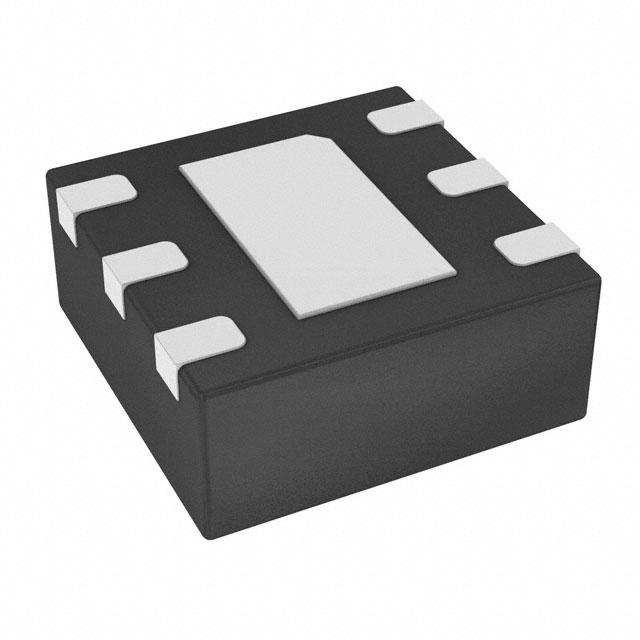

lmages are for reference only.MIC5259-2.8YML
IC REG LINEAR 300MA HIGH PSRR
Datasheet6-VDFN Exposed Pad, 6-MLF®
15,999 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-DFN (2x2)
MIC5259-2.8YML
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Micrel Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 150 µA |
| PSRR | 65dB ~ 53dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad, 6-MLF® |
| Supplier Device Package | 6-DFN (2x2) |
| Base Product Number | - |
| Current - Supply (Max) | 250 µA |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIC5259-2.8YML-TR | MIC5259-2.85BD5-TR | MIC5259-2.85BML-TR | MIC5259-2.85YD5-TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 2.8V 300MA 6MLF | IC REG LIN 2.85V 300MA TSOT23-5 | IC REG LINEAR 2.85V 300MA 6MLF | IC REG LIN 2.85V 300MA TSOT23-5 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
