MICROSMD075F-2
lmages are for reference only.MICROSMD075F-2
PTC RESET FUSE 6V 750MA 1210
Datasheet1210 (3225 Metric), Concave
40,684 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 750 mA Ih Surface Mount 1210 (3225 Metric), Concave
MICROSMD075F-2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | PolySwitch®, microSMD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 1.5 A |
| Current - Max | 40 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024" (0.62mm) |
| Lead Spacing | - |
| Approval Agency | CSA, TUV, UL |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 110 mOhms |
| Resistance - Post Trip (R1) (Max) | 400 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MICROSMD075-2 | MICROSMD005-2 | MICROSMD005F-2 | MICROSMD010-2 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | PTC RESET FUSE 6V 750MA 1210 | PTC RESET FUSE 30V 50MA 1210 | PTC RESET FUSE 30V 50MA 1210 | PTC RESET FUSE 30V 100MA 1210 |
| Series | PolySwitch®, microSMD | PolySwitch®, microSMD | PolySwitch®, microSMD | PolySwitch®, microSMD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT) |

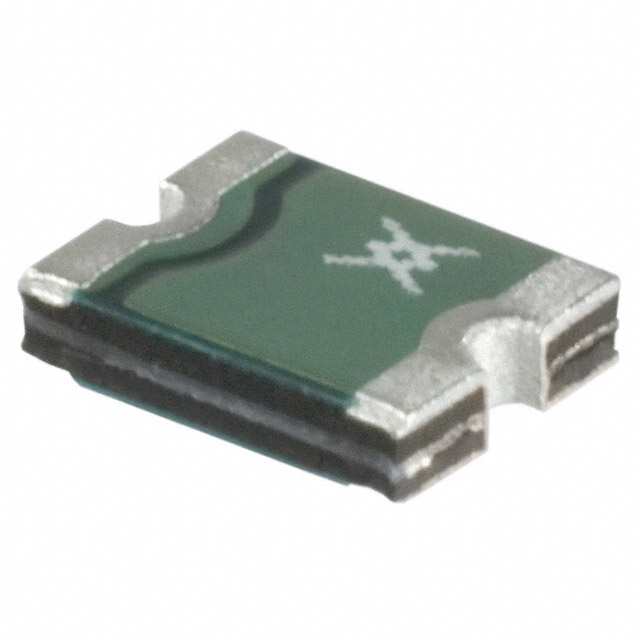

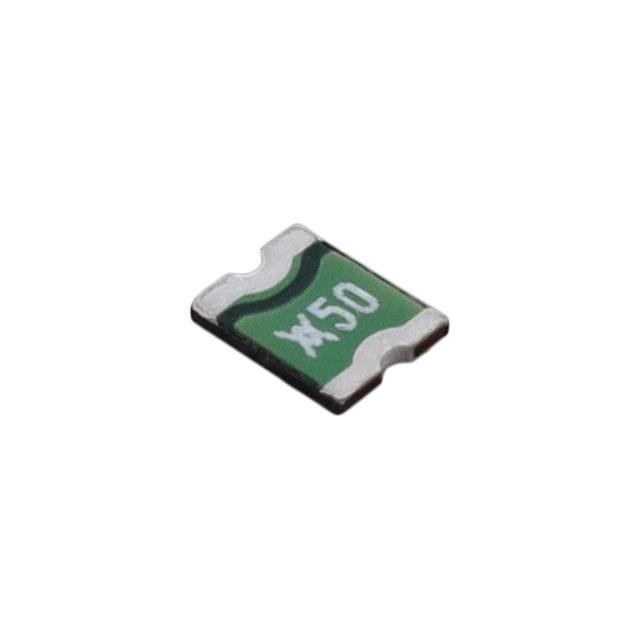

Recommended Products
