MIF75R12C1TL-BP
Manufacturer
Micro Commercial CoDescription
GBT MODULES
Datasheet
DatasheetPackage
Module
In Stock
33,168 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MIF75R12C1TL-BP
MIF75R12C1TL-BP
lmages are for reference only.Payment Methods
Delivery Services

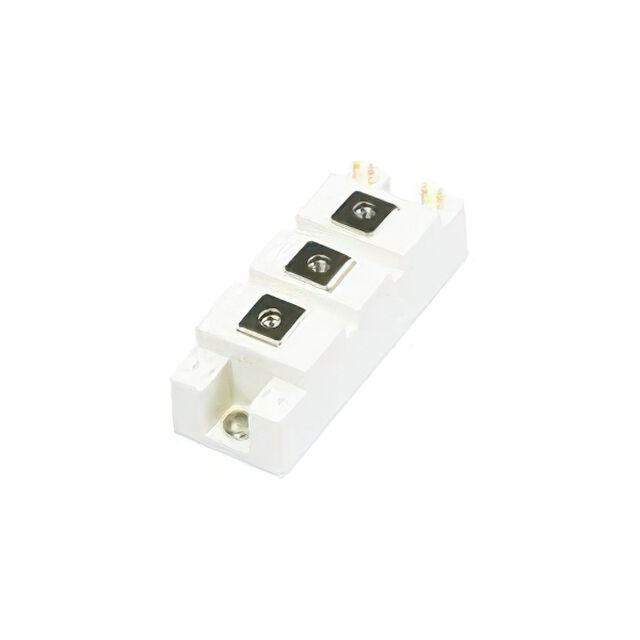

IGBT Module Trench Half Bridge Inverter 1200 V 75 A 530 W Chassis Mount C1
Quick Inquiry
MIF75R12C1TL-BP
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench |
| Configuration | Half Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Power - Max | 530 W |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 75A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 5520 pF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | C1 |
| Base Product Number | - |
