MIN02-001DC220J-F

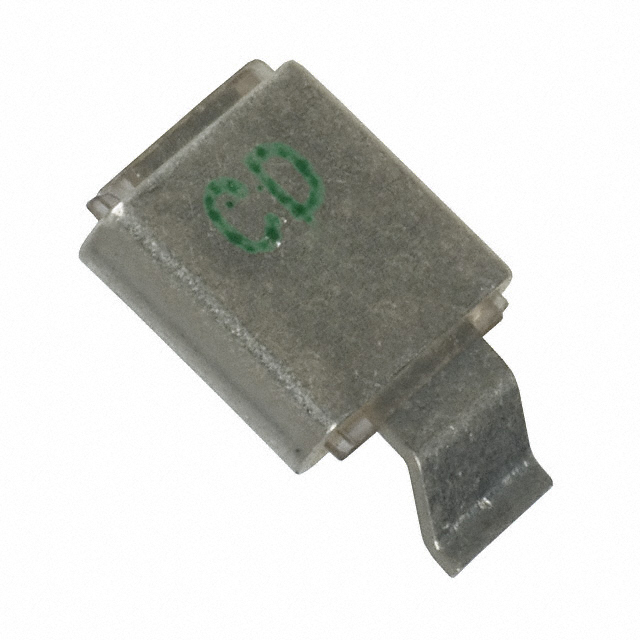

lmages are for reference only.MIN02-001DC220J-F
CAP MICA 22PF 5% 300V SMD
DatasheetNonstandard SMD
57,620 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 pF Mica Capacitor 300 V Nonstandard SMD
MIN02-001DC220J-F
| Category | Capacitors - Mica and PTFE Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | MIN |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 pF |
| Tolerance | ±5% |
| Voltage - Rated | 300 V |
| Dielectric Material | Mica |
| Operating Temperature | -55°C ~ 200°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Lead Spacing | - |
| Features | RF, High Frequency |
| Size / Dimension | - |
| Height - Seated (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MIN02-001DC240J-F | MIN02-001DC360J-F | MIN02-001DC560K-F | MIN02-001EC101K-F |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP MICA 24PF 5% 300V SMD | CAP MICA 36PF 5% 300V SMD | CAP MICA 56PF 10% 300V SMD | CAP MICA 100PF 10% 300V SMD |
| Series | MIN | MIN | MIN | MIN |
| Packaging | Bulk | Bulk | Bulk | Bulk |
