Product CatalogPart Number
MJ2-1712 PH-20
Manufacturer
MoujenDescription
SWITCH SNAP ACTION SPDT 20A 250V
Datasheet
DatasheetPackage
-
In Stock
98,945 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

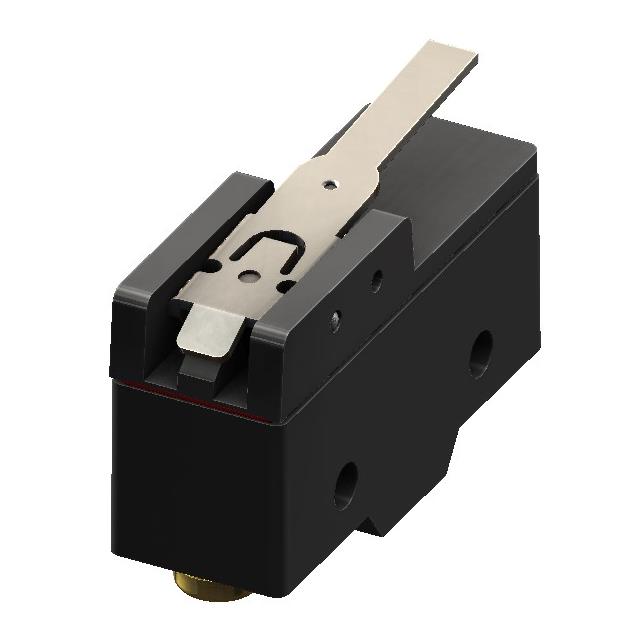

MJ2-1712 PH-20
MJ2-1712 PH-20
lmages are for reference only.Payment Methods
Delivery Services
Switch SPDT Chassis Mount
Quick Inquiry
MJ2-1712 PH-20
Specifications
| Category | Switches - Limit Switches - |
| Manufacturer | Moujen |
| Series | MJ2 |
| Packaging | Retail Package |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 20A (AC), 500mA (DC) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP40 |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 20,000,000 Cycles |
| Features | Actuator Seal Boot |
| Operating Force | 150gf |
| Release Force | 23gf |
| Operating Position | - |
| Pretravel | 0.310" (7.9mm) |
| Differential Travel | 0.060" (1.5mm) |
| Overtravel | 0.118" (3.0mm) |
| Operating Temperature | -25°C ~ 80°C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MJ2-1712 PH | MJ2-1300 PH | MJ2-1300 PH-20 | MJ2-1305 PH |
| Manufacturer | Moujen | Moujen | Moujen | Moujen |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SNAP ACTION SPDT 15A 250V | SWITCH SNAP ACTION SPDT 15A 250V | SWITCH SNAP ACTION SPDT 20A 250V | SWITCH SNAP ACTION SPDT 15A 250V |
| Series | MJ2 | MJ2 | MJ2 | MJ2 |
| Packaging | Retail Package | Retail Package | Retail Package | Retail Package |
