MKP1840315204M
lmages are for reference only.MKP1840315204M
CAP FILM 0.015UF 5% 2KVDC RADIAL
DatasheetRadial
91,234 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.015 µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
MKP1840315204M
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | MKP1840M |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.236" W (26.00mm x 6.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | MKP1840315205M | MKP1840315254M | MKP1840315255M | MKP1840310104M |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

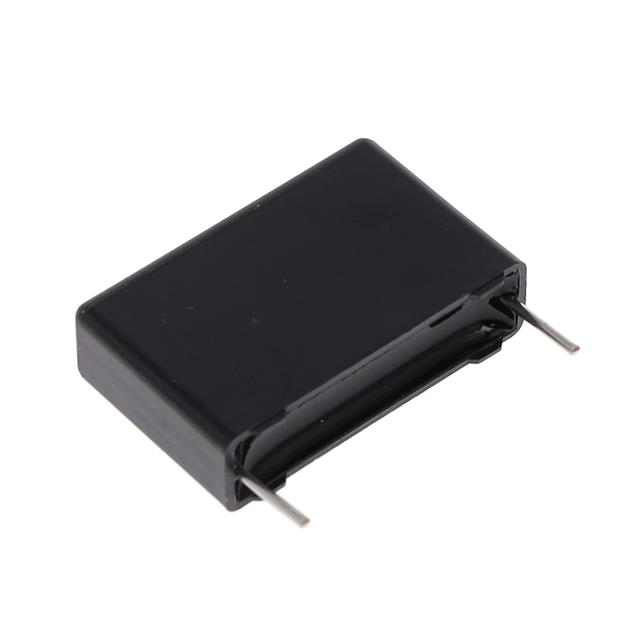

| Description | CAP FILM 0.015UF 10% 2KVDC RAD | CAP FILM 0.015UF 5% 250VDC RAD | CAP FILM 0.015UF 10% 250VDC RAD | CAP FILM 10000PF 5% 1KVDC RADIAL |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
