MKP383268160JC02Z0

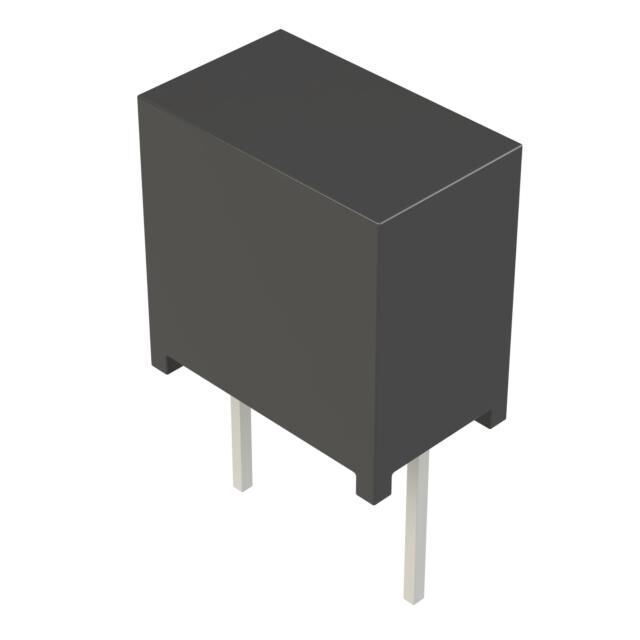

lmages are for reference only.MKP383268160JC02Z0
CAP FILM 6800PF 5% 1.6KVDC RAD
DatasheetRadial
71,115 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6800 pF Film Capacitor 550V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
MKP383268160JC02Z0
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | MKP383 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 6800 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 550V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.689" L x 0.276" W (17.50mm x 7.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MKP383268160JC02R0 | MKP383268160JF02W0 | MKP383268160JFI2B0 | MKP383268160JFM2B0 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 6800PF 5% 1.6KVDC RAD | CAP FILM 6800PF 5% 1.6KVDC RAD | CAP FILM 6800PF 5% 1.6KVDC RAD | CAP FILM 6800PF 5% 1.6KVDC RAD |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Bulk |
