MLP561M300EB0A
lmages are for reference only.MLP561M300EB0A
CAP ALUM 560UF 20% 300V FLATPACK
DatasheetFlatPack, Tabbed
61,937 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 µF 300 V Aluminum Electrolytic Capacitors FlatPack, Tabbed 240mOhm 2000 Hrs @ 85°C
MLP561M300EB0A
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | MLP |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 300 V |
| ESR (Equivalent Series Resistance) | 240mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 3.000" L x 1.750" W (76.20mm x 44.45mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | FlatPack, Tabbed |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
|

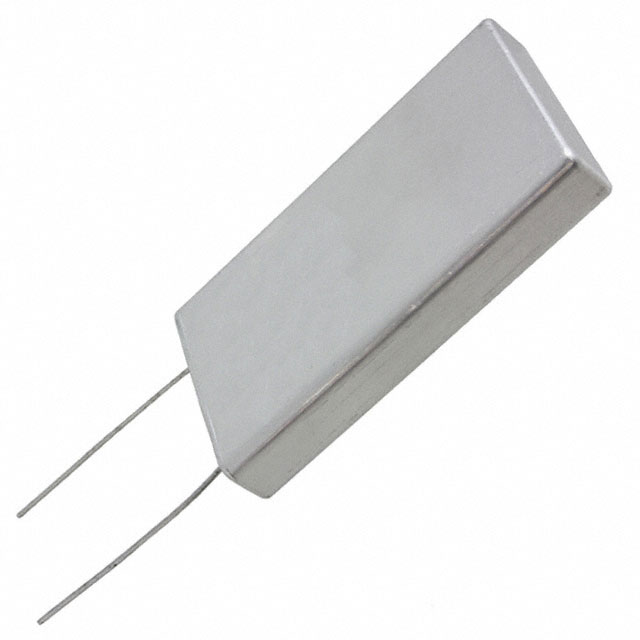

| Part Number | MLP561M300EB0C | MLP561M300EB0D | MLP561M300EB1A | MLP561M300EB1C |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CAP ALUM 560UF 20% 300V FLTPCK | CAP ALUM 560UF 20% 300V FLATPACK | CAP ALUM 560UF 20% 300V FLATPACK | CAP ALUM 560UF 20% 300V FLTPCK |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
