MLPS223M016EA0C

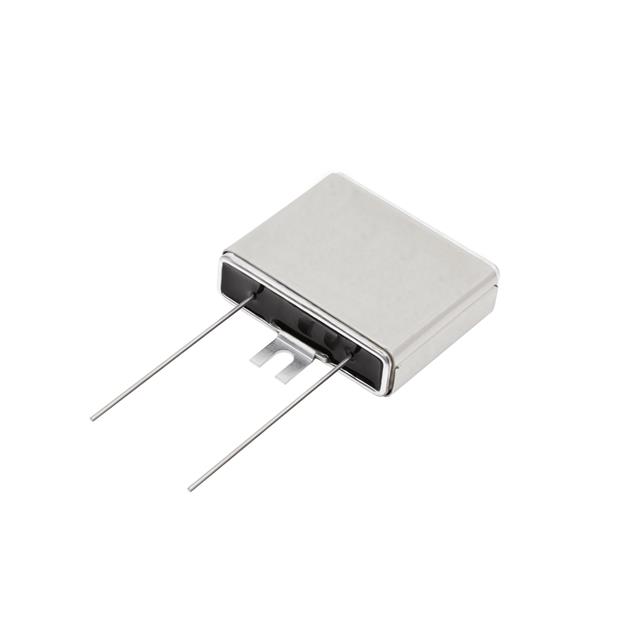

lmages are for reference only.MLPS223M016EA0C
CAP ALUM 22000UF 20% 16V RADIAL
DatasheetFlatPack
90,322 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22000 µF 16 V Aluminum Electrolytic Capacitors FlatPack 43mOhm @ 120Hz 10000 Hrs @ 105°C
MLPS223M016EA0C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | MLPS |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 43mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.32 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.58 A @ 20 kHz |
| Lead Spacing | 1.000" (25.40mm) |
| Size / Dimension | 1.810" L x 0.600" W (45.97mm x 15.24mm) |
| Height - Seated (Max) | 2.020" (51.31mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
|
|
| Part Number | MLPS201M420EA0C | MLPS203M010EK0C | MLPS203M7R5EK0C | MLPS211M400EA0C |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ||||
| Description | CAP ALUM 200UF 20% 420V RADIAL | CAP ALUM 20000UF 20% 10V RADIAL | CAP ALUM 20000UF 20% 7.5V RADIAL | CAP ALUM 210UF 20% 400V RADIAL |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
