MLV-015A-E1BS-N
lmages are for reference only.MLV-015A-E1BS-N
SENSOR 15PSIA 0.09" .0375V 4SIP
Datasheet4-SIP, Dual Ports, Same Side
88,849 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.24mm) Tube, Dual 0 mV ~ 37.5 mV (5V) 4-SIP, Dual Ports, Same Side
MLV-015A-E1BS-N
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | MLV |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | MLV-015A |
| Applications | Board Mount |
| Pressure Type | Absolute |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 37.5 mV (5V) |
| Accuracy | ±0.5% |
| Voltage - Supply | 12V |
| Port Size | Male - 0.09" (2.24mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 60PSI (413.69kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

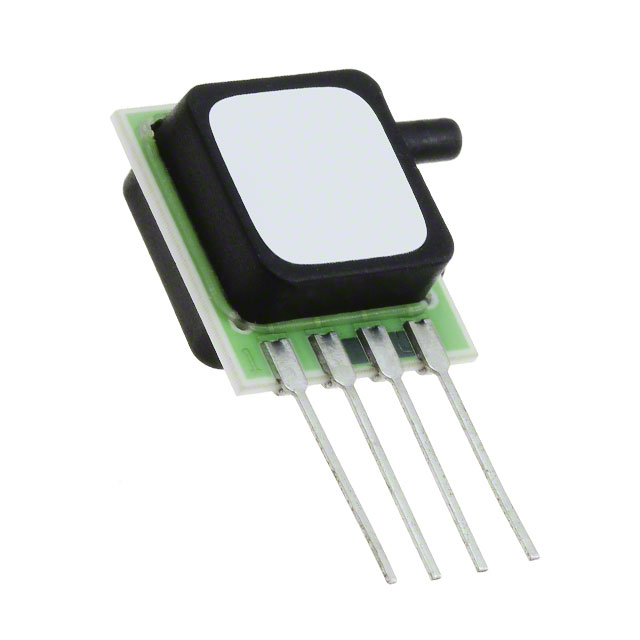

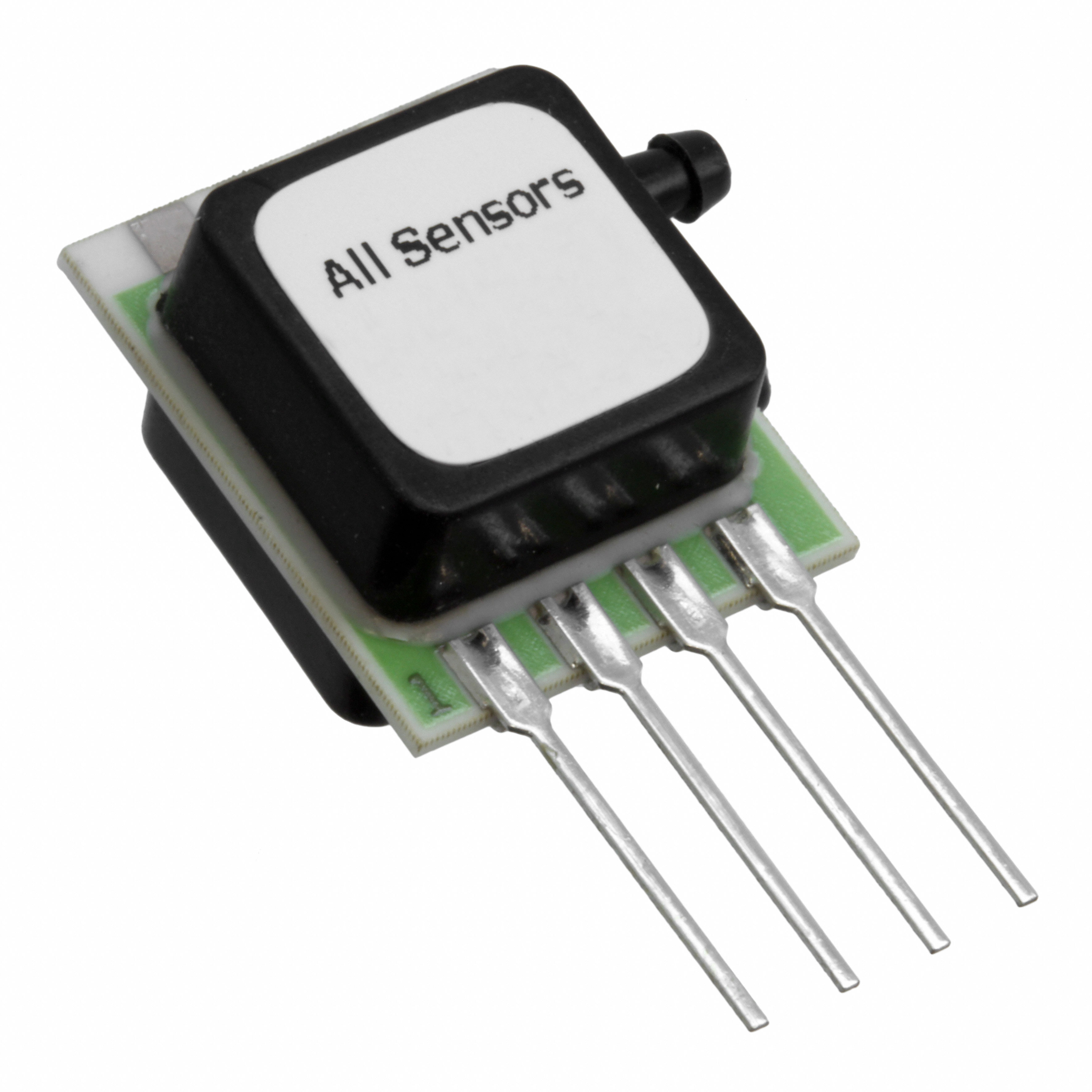

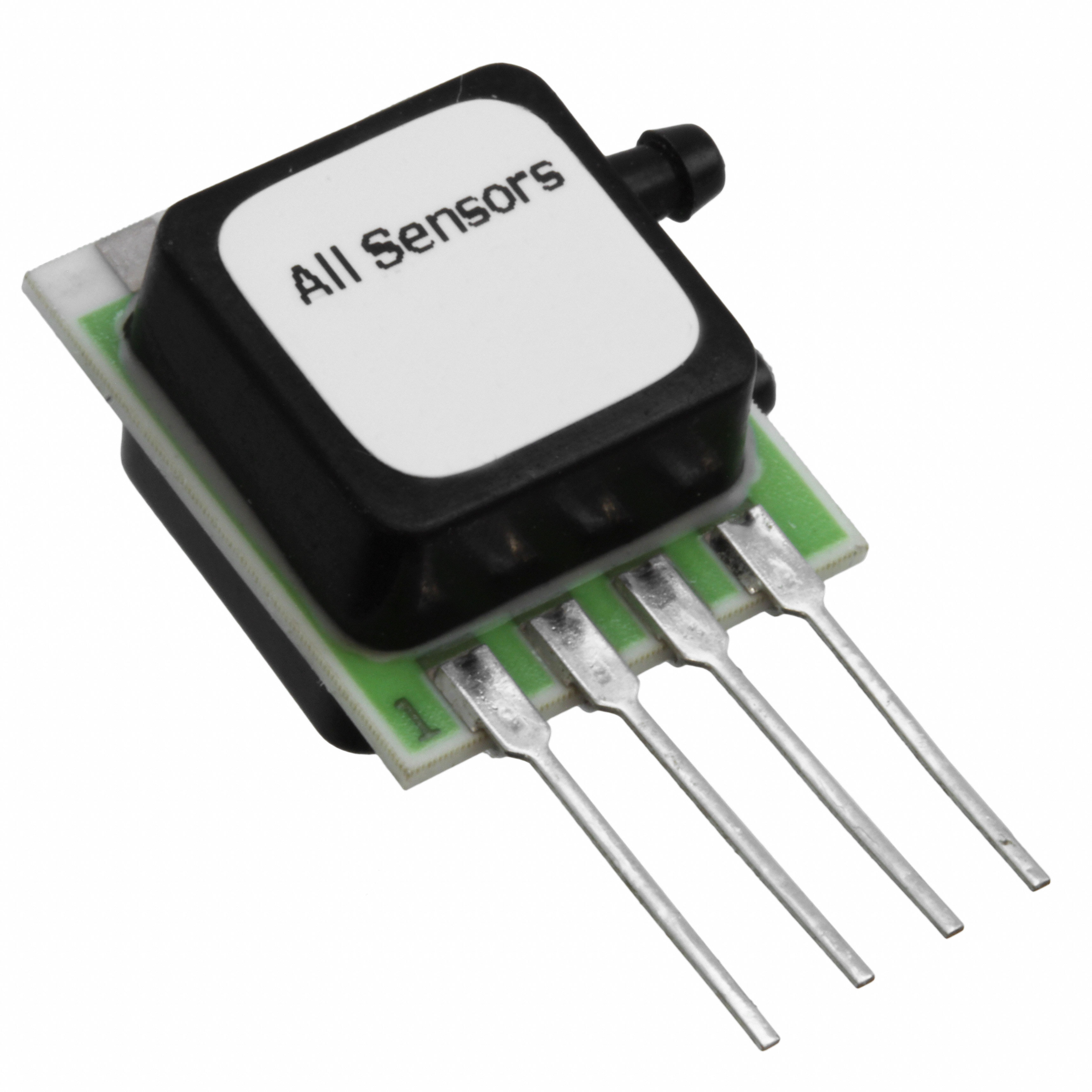

| Part Number | MLV-005D-E1BS-N | MLV-015D-E1BS-N | MLV-030D-E1BS-N | ABPLLNN001BG2D3 |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR 5PSID 0.09" .025V 4SIP | SENSOR 15PSID 0.09" .0375V 4SIP | SENSOR 30PSID 0.09" .0375V 4SIP | BASIC PRESSURE SENSOR |
| Series | MLV | MLV | MLV | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
