MLV-L20D-E1NS-N
lmages are for reference only.MLV-L20D-E1NS-N
SENSOR 0.72PSID 0.08" .02V 4SIP
Datasheet4-SIP, Dual Ports, Same Side
22,173 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±0.72PSI (±4.96kPa) Differential Male - 0.08" (2.04mm) Tube, Dual 0 mV ~ 20 mV (5V) 4-SIP, Dual Ports, Same Side
MLV-L20D-E1NS-N
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | MLV |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | MLV-L20D |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±0.72PSI (±4.96kPa) |
| Output Type | Wheatstone Bridge |
| Output | 0 mV ~ 20 mV (5V) |
| Accuracy | ±0.3% |
| Voltage - Supply | 12V |
| Port Size | Male - 0.08" (2.04mm) Tube, Dual |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | ±7.23PSI (±49.83kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Dual Ports, Same Side |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | MLV-L20D-E1NS-N | MLV-L01D-E1NS-N | MLV-L01D-E1NS-N | MLV-L02D-E1NS-N |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

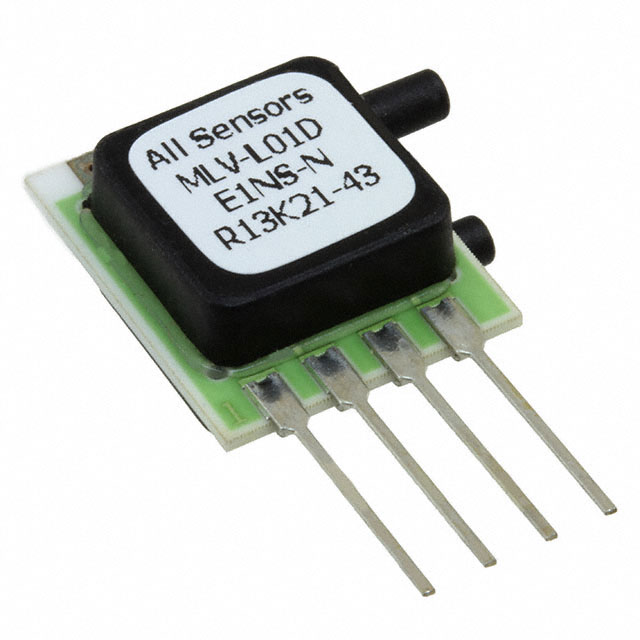

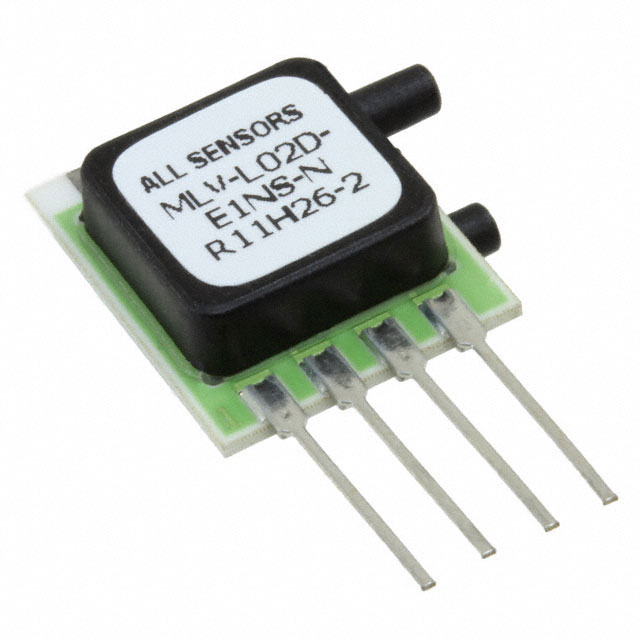

| Description | SENSOR 0.72PSID 0.08" .02V 4SIP | SENSOR 0.04PSID 0.08" .007V 4SIP | SENSOR 0.04PSID 0.08" .007V 4SIP | SENSOR 0.07PSID 0.08" .01V 4SIP |
| Series | MLV | MLV | MLV | MLV |
| Packaging | Bulk | Bulk | Bulk | Bulk |
