MLX90364LVS-ADD-251-RE

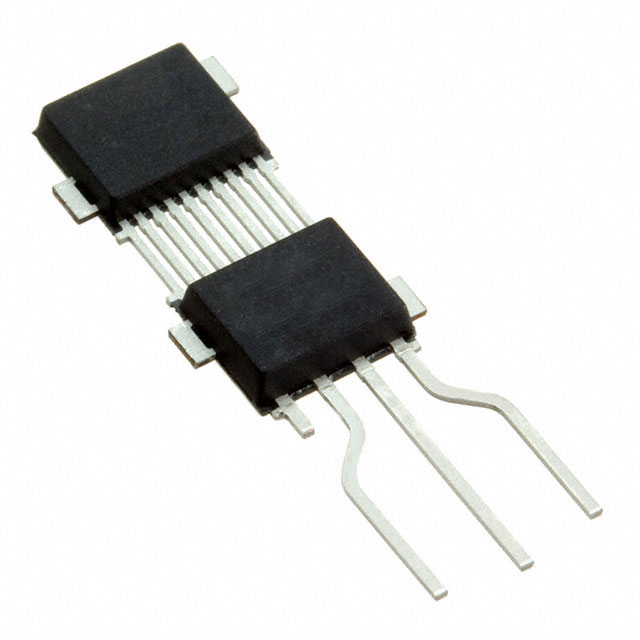

lmages are for reference only.MLX90364LVS-ADD-251-RE
SENSOR ROTARY 360DEG PC PIN
Datasheet4-SIP Module, Formed Leads
30,773 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included PC Pin
MLX90364LVS-ADD-251-RE
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Melexis Technologies NV |
| Series | Triaxis® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | Analog, PWM |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±2.5° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | 4-SIP Module, Formed Leads |
| Supplier Device Package | 4-DMP |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Base Product Number | MLX90364 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX90364LVS-ADD-251-RX | MLX90364LVS-ADD-251-SP | MLX90364LVS-ADD-200-RE | MLX90364LVS-ADD-200-RX |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR ROTARY 360DEG PC PIN | SENSOR ROTARY 360DEG PC PIN | SENSOR ROTARY 360DEG PC PIN | SENSOR ROTARY 360DEG PC PIN |
| Series | Triaxis® | Triaxis® | Triaxis® | Triaxis® |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
