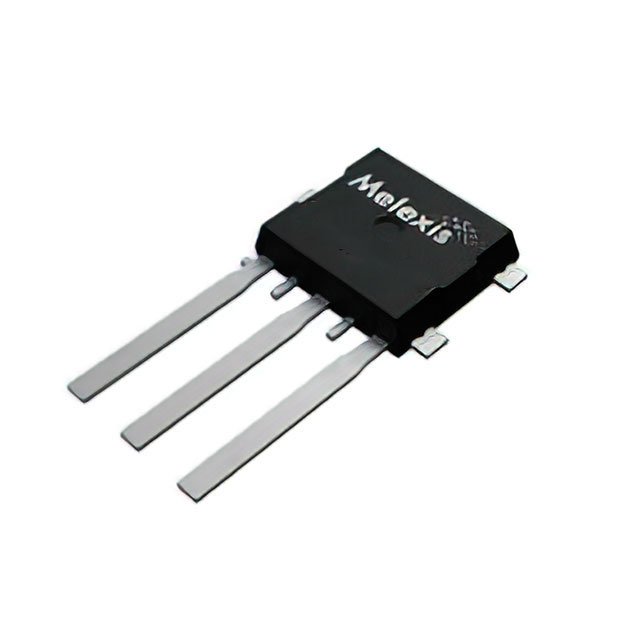

MLX90377GVE-ADB-210-TU
lmages are for reference only.MLX90377GVE-ADB-210-TU
SENSOR ROTRY/LNEAR ANLG/PWM 3SMP
Datasheet3-SIP Module
79,149 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Linear Position External Magnet, Not Included PC Pin
MLX90377GVE-ADB-210-TU
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Melexis Technologies NV |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | - |
| Output | Analog Voltage, PWM |
| Output Signal | Programmable |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 160°C |
| Package / Case | 3-SIP Module |
| Supplier Device Package | SMP-3 |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX90377GVE-ADB-210-RE | MLX90377GVE-ADB-210-RX | MLX90377GVE-ADB-210-SP | MLX90377GVE-ADB-110-RE |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR MAGNET POSITION 3SMP | SENSOR MAGNET POSITION 3SMP | SENSOR ROTRY/LNEAR ANLG/PWM 3SMP | SENSOR MAGNET POSITION 3SMP |
| Series | Triaxis® | Triaxis® | - | Triaxis® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
