MLX90380LGO-BAB-023-SP

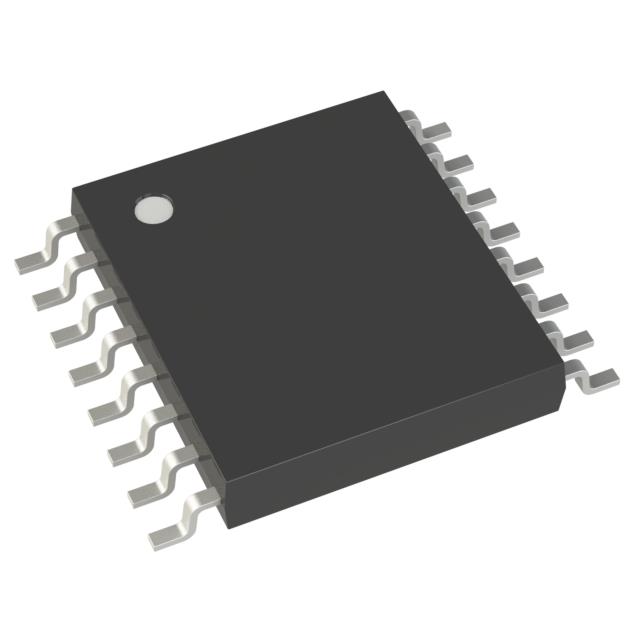

lmages are for reference only.MLX90380LGO-BAB-023-SP
SENSOR ROTARY 360DEG SMD
Datasheet16-TSSOP (0.173", 4.40mm Width)
49,449 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included Gull Wing
MLX90380LGO-BAB-023-SP
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Melexis Technologies NV |
| Series | Triaxis® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | - |
| Output Signal | - |
| Actuator Type | External Magnet, Not Included |
| Linearity | - |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 3.135V ~ 3.6V |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Grade | - |
| Qualification | - |
| Base Product Number | MLX90380 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX90380LGO-BAB-023-RE | MLX90380LGO-BAB-000-RE | MLX90380LGO-BAB-000-SP | MLX90380LGO-BAB-003-RE |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR ROTARY 360DEG SMD | SENSOR RESOLVER ANLG 2CH 16TSSOP | SENSOR RESOLVER ANLG 2CH 16TSSOP | SENSOR RESOLVER ANLG 2CH 16TSSOP |
| Series | Triaxis® | Triaxis® | Triaxis® | Triaxis® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
