MLX90393ELW-ABA-014-SP

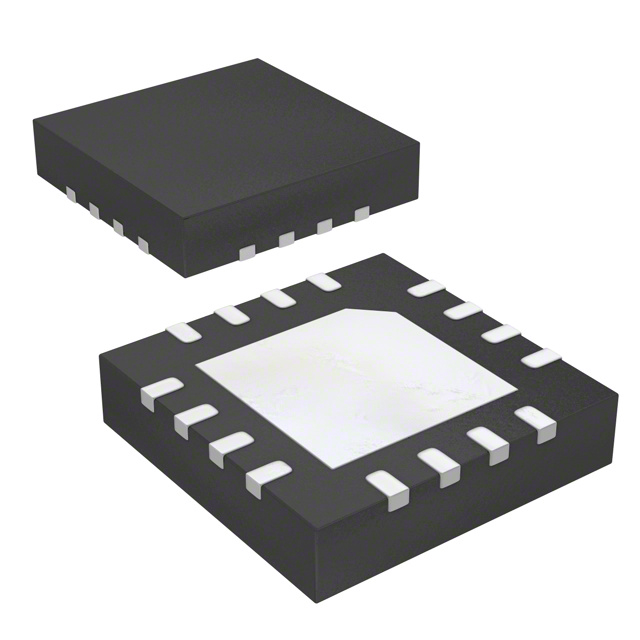

lmages are for reference only.MLX90393ELW-ABA-014-SP
SENSOR HALL I2C/SPI 16QFN
Datasheet16-VFQFN Exposed Pad
72,345 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor X, Y, Z Axis 16-QFN (3x3)
MLX90393ELW-ABA-014-SP
| Category | Sensors, Transducers - Magnetic Sensors - Linear-Compass ICs |
| Manufacturer | Melexis Technologies NV |
| Series | Triaxis® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Hall Effect |
| Axis | X, Y, Z |
| Output Type | I2C, SPI |
| Sensing Range | - |
| Voltage - Supply | 2.2V ~ 3.6V |
| Current - Supply (Max) | 4mA |
| Current - Output (Max) | 100µA |
| Resolution | 16 b |
| Bandwidth | 10Hz |
| Operating Temperature | -40°C ~ 85°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Features | - |
| Supplier Device Package | 16-QFN (3x3) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Base Product Number | MLX90393 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX90393ELW-ABA-014-RE | MLX90393ELW-ABA-011-RE | MLX90393ELW-ABA-011-SP | MLX90393ELW-ABA-012-RE |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR HALL I2C/SPI 16QFN | SENSOR HALL I2C/SPI 16QFN | SENSOR HALL I2C/SPI 16QFN | SENSOR HALL I2C/SPI 16QFN |
| Series | Triaxis® | Triaxis® | Triaxis® | Triaxis® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
