MLX90422GVD-ADD-030-TU

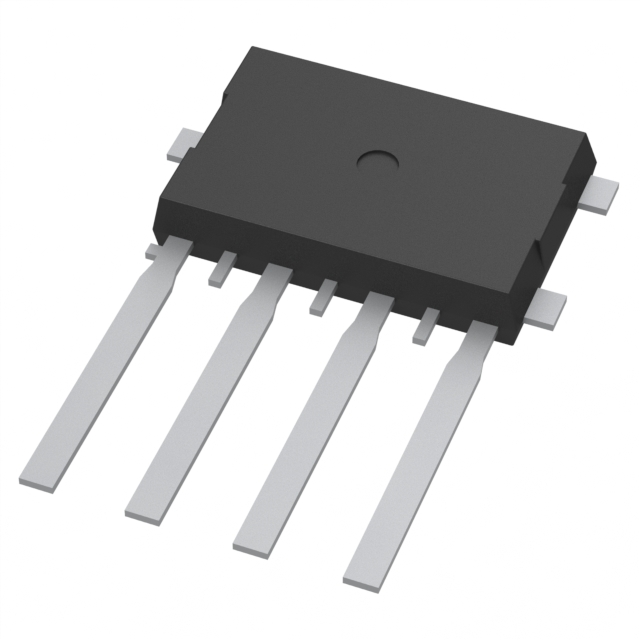

lmages are for reference only.MLX90422GVD-ADD-030-TU
SENSOR MAG POS RATIO/PWM 4SMP
Datasheet4-SIP Module
79,300 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included PC Pin
MLX90422GVD-ADD-030-TU
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Melexis Technologies NV |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | SENT |
| Output Signal | Programmable |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 160°C |
| Package / Case | 4-SIP Module |
| Supplier Device Package | SMP-4 |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLX90422GVD-ADD-030-RE | MLX90422GVD-ADD-030-RX | MLX90422GVD-ADD-030-SP | MLX90421GDC-ADC-000-RE |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR MAG POS RATIO/PWM 4SMP | SENSOR MAG POS RATIO/PWM 4SMP | SENSOR MAG POS RATIO/PWM 4SMP | SENSOR MAG POS RATIO/PWM 8SOIC |
| Series | - | - | - | Triaxis® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
