MLX90422GVS-ADD-038-RX
lmages are for reference only.MLX90422GVS-ADD-038-RX
SENSOR MAGNETIC POS SENT 4DMP
Datasheet4-SSIP Module
95,882 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Linear, Rotary Position External Magnet, Not Included PC Pin
MLX90422GVS-ADD-038-RX
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Melexis Technologies NV |
| Series | Triaxis® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear, Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous |
| Linear Range | - |
| Output | SENT |
| Output Signal | Programmable |
| Actuator Type | External Magnet, Not Included |
| Linearity | ±1° |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 160°C |
| Package / Case | 4-SSIP Module |
| Supplier Device Package | 4-DMP |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

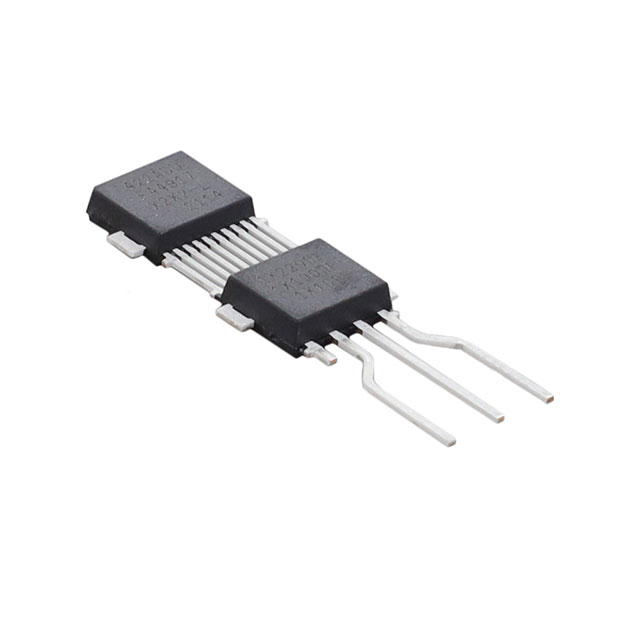

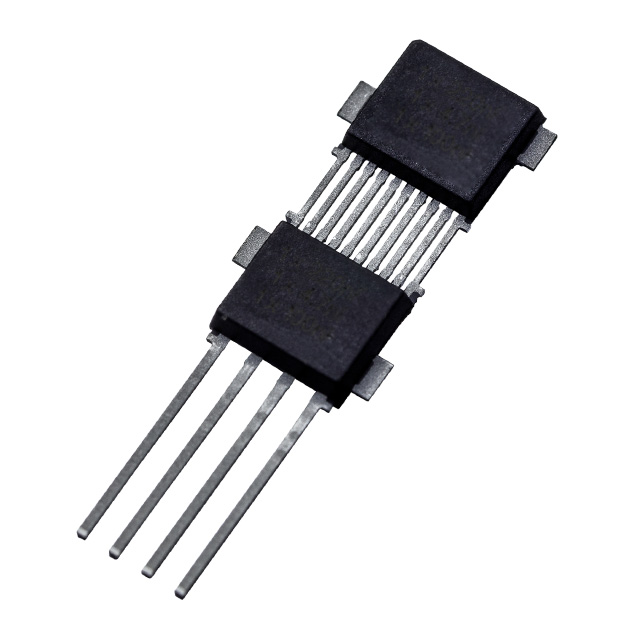

| Part Number | MLX90422GVS-ADD-038-RE | MLX90422GVS-ADD-038-SP | MLX90422GVS-ADD-038-TU | MLX90422GVS-ADD-030-RE |
| Manufacturer | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV | Melexis Technologies NV |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR MAGNETIC POS SENT 4DMP | SENSOR MAGNETIC POS SENT 4DMP | SENSOR MAG POS RATIO/PWM 4DMPS | SENSOR MAGNETIC POS SENT 4DMP |
| Series | Triaxis® | Triaxis® | - | Triaxis® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tape & Reel (TR) |
