MLZ2012A2R2WTD25

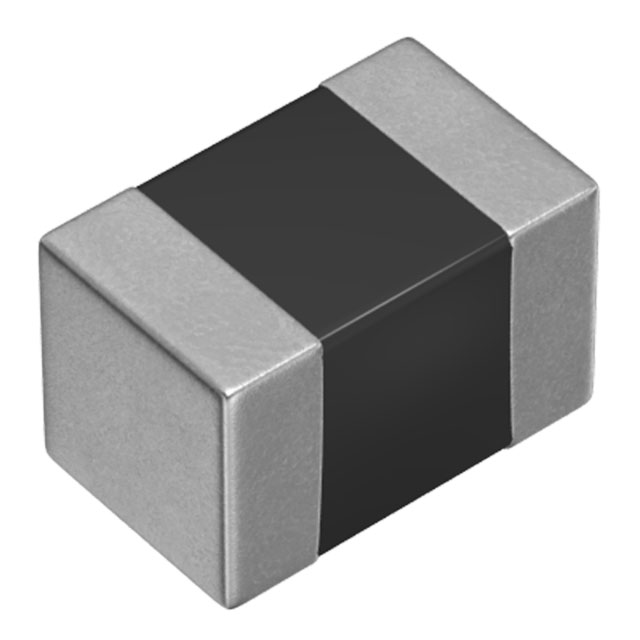

lmages are for reference only.MLZ2012A2R2WTD25
FIXED IND 2.2UH 650MA 150MOHM SM
Datasheet0805 (2012 Metric)
38,818 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µH Shielded Multilayer Inductor 650 mA 150mOhm 0805 (2012 Metric)
MLZ2012A2R2WTD25
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | MLZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | 210mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 150mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLZ2012A2R2MT000 | MLZ2012A2R2WT000 | MLZ2012A1R0MT000 | MLZ2012A1R0WT000 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.2UH 160MA 260MOHM SM | FIXED IND 2.2UH 650MA 150MOHM SM | FIXED IND 1UH 900MA 100 MOHM SMD | FIXED IND 1UH 900MA 100 MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
