MMRF2010NR1
lmages are for reference only.MMRF2010NR1
RF MOSFET LDMOS 50V TO270-14
DatasheetTO-270-14 Variant, Flat Leads
23,655 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 50 V 80 mA 1.09GHz 32.1dB 250W TO-270 WB-14
MMRF2010NR1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 1.09GHz |
| Gain | 32.1dB |
| Voltage - Test | 50 V |
| Current Rating (Amps) | 10µA |
| Noise Figure | - |
| Current - Test | 80 mA |
| Power - Output | 250W |
| Voltage - Rated | 100 V |
| Mounting Type | Chassis Mount |
| Package / Case | TO-270-14 Variant, Flat Leads |
| Supplier Device Package | TO-270 WB-14 |
| Base Product Number | MMRF2010 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

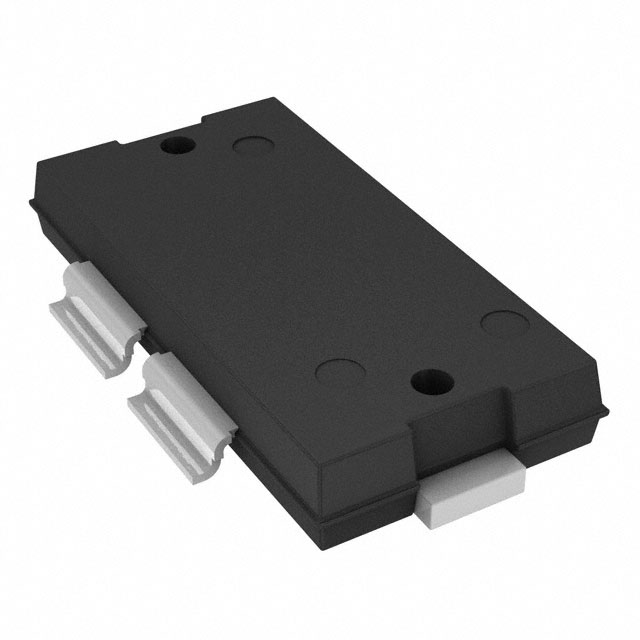

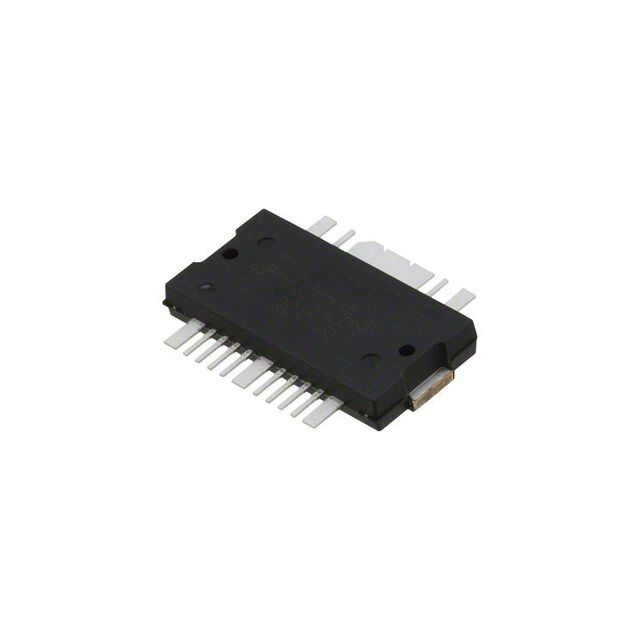

| Part Number | MMRF2010GNR1 | MMRF2004NBR1 | MMRF2005GNR1 | MMRF2005NR1 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF MOSFET LDMOS 50V TO270-14 | RF MOSFET LDMOS 28V TO272-16 | RF MOSFET LDMOS | RF MOSFET LDMOS 28V TO270-16 |
| Series | - | - | * | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
