MMZ0603S102HTD25
lmages are for reference only.MMZ0603S102HTD25
FERRITE BEAD 1K OHM 0201 1LN
Datasheet0201 (0603 Metric)
54,244 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0201 (0603 Metric) 200mA 1.25Ohm
MMZ0603S102HTD25
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TDK Corporation |
| Series | MMZ-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 1 kOhms @ 100 MHz |
| Current Rating (Max) | 200mA |
| DC Resistance (DCR) (Max) | 1.25Ohm |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.013" (0.33mm) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

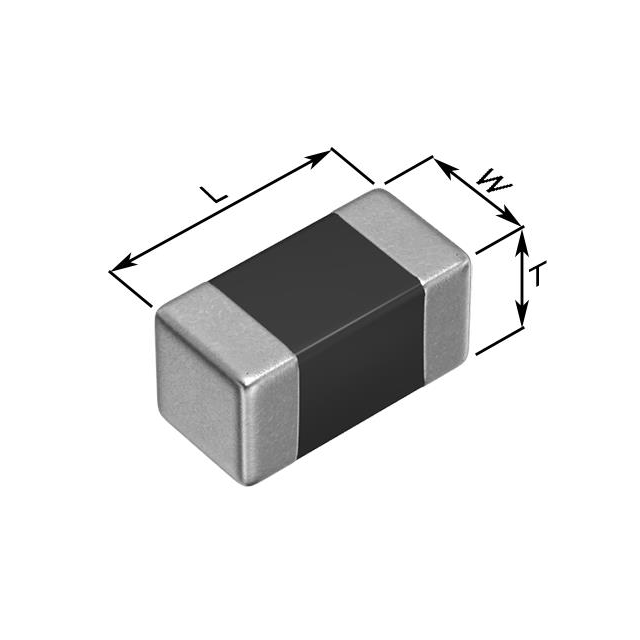

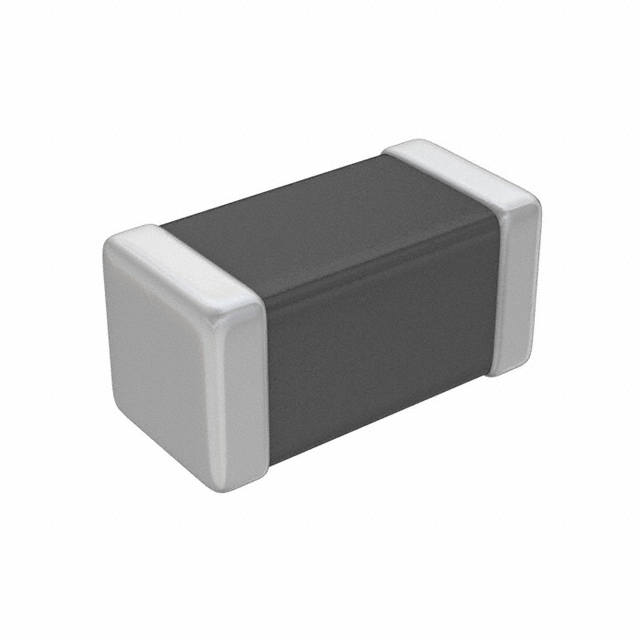

| Part Number | MMZ0603S102HT000 | MMZ0603S100CT000 | MMZ0603S100CTD25 | MMZ0603S102ET000 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 1K OHM 0201 1LN | FERRITE BEAD 10 OHM 0201 1LN | FERRITE BEAD 10 OHM 0201 1LN | FERRITE BEAD 1K OHM 0201 1LN |
| Series | MMZ-H | MMZ | MMZ | MMZ-E |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
