MMZ1005S121CT000
lmages are for reference only.MMZ1005S121CT000
FERRITE BEAD 120 OHM 0402 1LN
Datasheet0402 (1005 Metric)
25,785 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 500mA 220mOhm
MMZ1005S121CT000
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TDK Corporation |
| Series | MMZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 220mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.022" (0.55mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

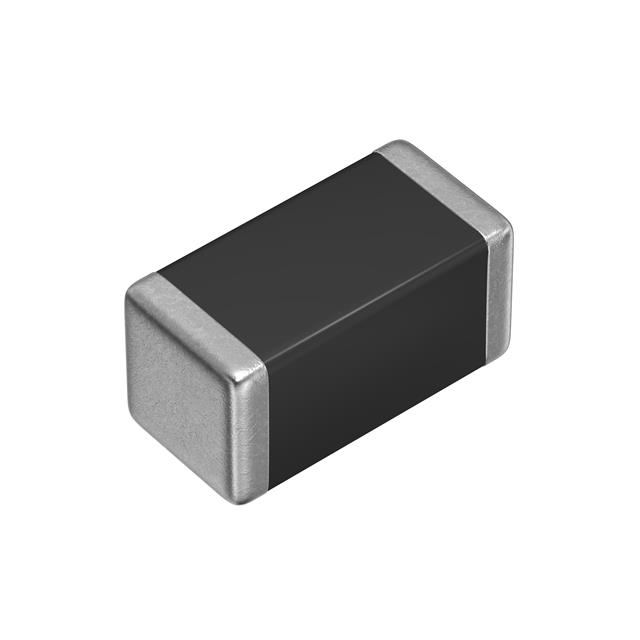

| Part Number | MMZ1005S121CTD25 | MMZ1005S121AT000 | MMZ1005S121HT000 | MMZ1005S121HTD25 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 120 OHM 0402 1LN | FERRITE BEAD 120 OHM 0402 1LN | FERRITE BEAD 120 OHM 0402 1LN | FERRITE BEAD 120 OHM 0402 1LN |
| Series | MMZ | MMZ | MMZ-H | MMZ-H |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
