MMZ1608F030BTD25

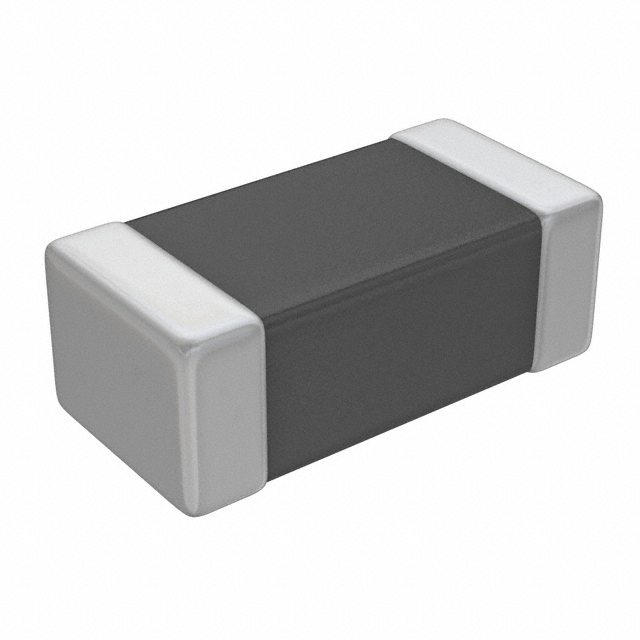

lmages are for reference only.MMZ1608F030BTD25
FERRITE BEAD 3 OHM 0603 1LN
Datasheet0603 (1608 Metric)
72,689 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0603 (1608 Metric) 700mA 50mOhm
MMZ1608F030BTD25
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TDK Corporation |
| Series | MMZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 3 Ohms @ 100 MHz |
| Current Rating (Max) | 700mA |
| DC Resistance (DCR) (Max) | 50mOhm |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.037" (0.95mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MMZ1608F030BTA00 | MMZ1608A152ETA00 | MMZ1608A182BTA00 | MMZ1608A182BTD25 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FERRITE BEAD 3 OHM 0603 1LN | FERRITE BEAD 1.5K OHM 0603 1LN | FERRITE BEAD 1.8K OHM 0603 1LN | FERRITE BEAD 1.8K OHM 0603 1LN |
| Series | MMZ | MMZ-E | MMZ | MMZ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |

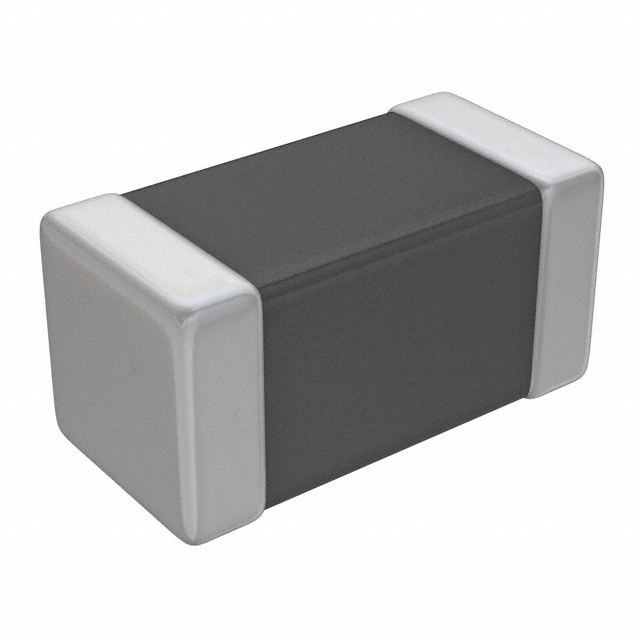

Recommended Products
