MNRS15750R0005F
lmages are for reference only.MNRS15750R0005F
RES SMD 500 UOHM 1% 6W 6030
Datasheet6030 (15075 Metric)
75,150 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.5 mOhms ±1% 6W Chip Resistor 6030 (15075 Metric) Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Metal Element
MNRS15750R0005F
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Riedon products by Bourns |
| Series | MNRS |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Resistance | 0.5 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 6W |
| Composition | Metal Element |
| Features | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 6030 (15075 Metric) |
| Supplier Device Package | - |
| Ratings | - |
| Size / Dimension | 0.598" L x 0.295" W (15.20mm x 7.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

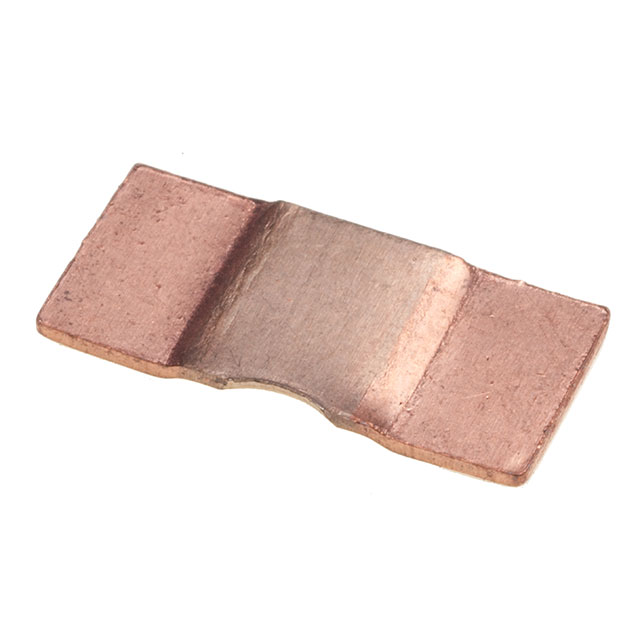

| Part Number | MNRS15750R001F | MNRS15750R002F | MNRS15750R003F | MNRS10500R0005F |
| Manufacturer | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

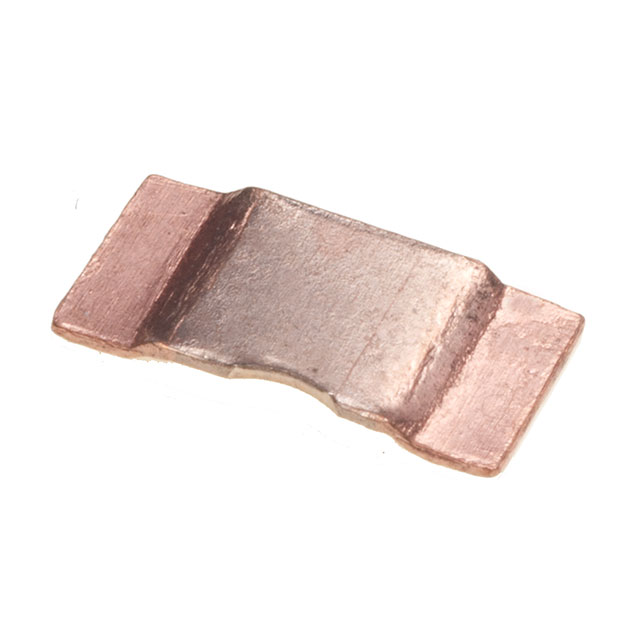

| Description | RES 0.001 OHM 1% 6W 6030 | RES 0.002 OHM 1% 4W 6030 | RES 0.003 OHM 1% 3.5W 6030 | RES SMD 500 UOHM 1% 5W 4020 |
| Series | Riedon products by Bourns | Riedon products by Bourns | Riedon products by Bourns | |
| Packaging | Strip | Strip | Strip |
