MOC3023SM

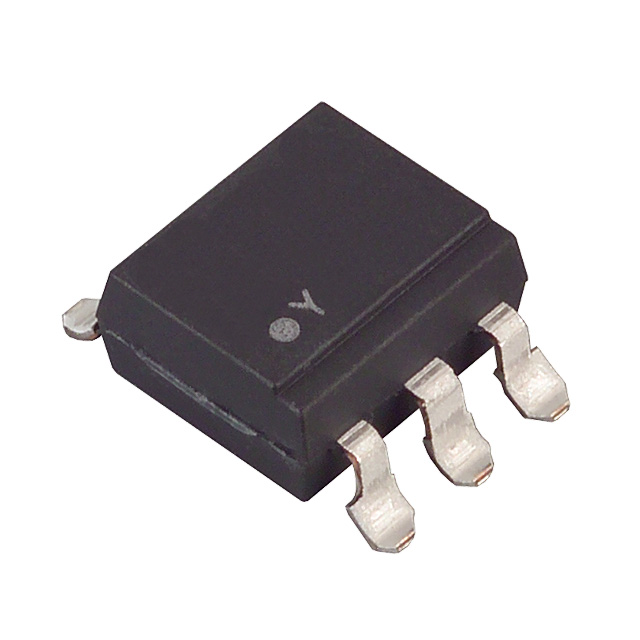

lmages are for reference only.MOC3023SM
6PIN RANDOM PHASE TRIAC, OPTOCOU
Datasheet6-SMD, Gull Wing
63,544 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5000Vrms 1 Channel
MOC3023SM
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Isocom Components 2004 LTD |
| Series | MOC302 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 400 V |
| Static dV/dt (Min) | 10V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - Hold (Ih) | 100µA |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | - |
| Approval Agency | UL, VDE |
| Base Product Number | - |
| Current - On State (It (RMS)) (Max) | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MOC3023S | MOC3023S-TA | MOC3023S-TA1 | MOC3023SM |
| Manufacturer | Lite-On Inc. | Lite-On Inc. | Lite-On Inc. | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 5KV TRIAC 6SMD | OPTOISOLATOR 5KV TRIAC 6SMD | OPTOISOLATOR 5KV TRIAC 6SMD | OPTOISOLATOR 4.17KV TRIAC 6SMD |
| Series | MOC302x | MOC302x | MOC302x | - |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube |
