MP024GS-10

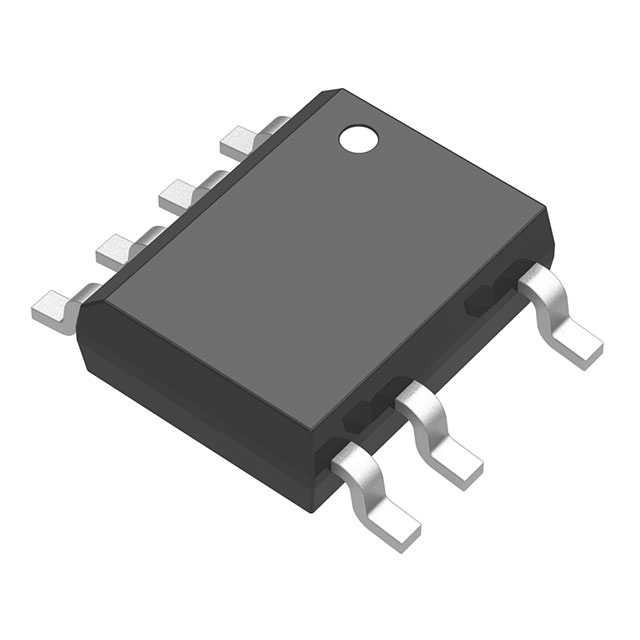

lmages are for reference only.MP024GS-10
IC OFFLINE SWITCH FLYBACK 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width), 7 Leads
96,717 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology 75Hz ~ 40kHz 8-SOIC-7B
MP024GS-10
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25V |
| Duty Cycle | - |
| Frequency - Switching | 75Hz ~ 40kHz |
| Power (Watts) | 1.66 W |
| Fault Protection | Open-Loop, Overload, Over-Temperature, Over-Voltage, Sensing-Short, UVLO |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 110°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 8-SOIC-7B |
| Mounting Type | Surface Mount |
| Base Product Number | MP024 |
| Voltage - Start Up | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MP024GS-10-P | MP024GS-10-Z | MP020-5GS-P | MP020-5GS-Z |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PRIMARY-SIDE REGULATOR WITH CV/C | IC OFFLINE SWITCH FLYBACK 8SOIC | NRFND: FOR NEW DESIGNS, RECOMMEN | IC OFFLINE SWITCH FLYBACK 8SOIC |
| Series | - | - | MP | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
