MP07692
lmages are for reference only.MP07692
24.5760 MHz GXO-7506L/A Ultra-Lo
Datasheet4-SMD, No Lead
24,937 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.576 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
MP07692
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Golledge Electronics Ltd |
| Series | GXO-7506L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 24.576 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 20mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.295" L x 0.197" W (7.50mm x 5.00mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|

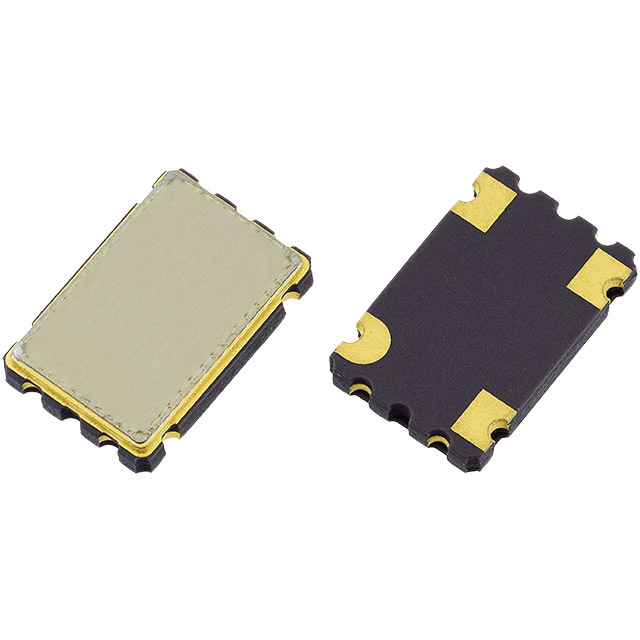

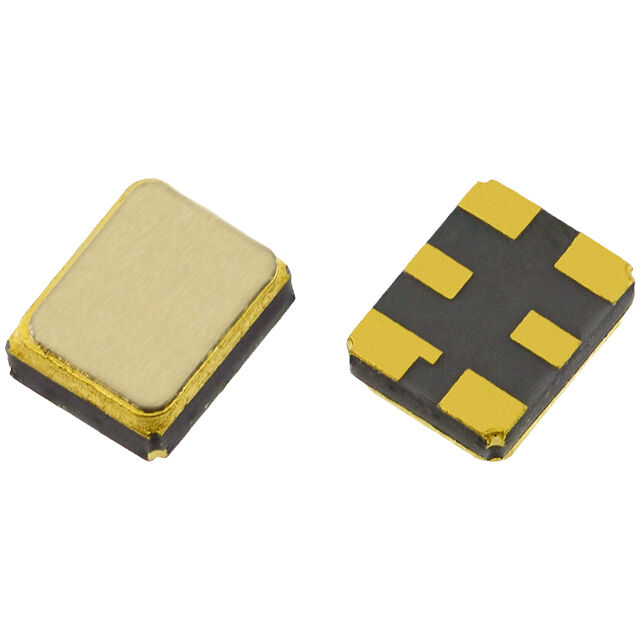

| Part Number | MP07691 | MP07693 | MP07688 | MP07724 |
| Manufacturer | Golledge Electronics Ltd | Golledge Electronics Ltd | Golledge Electronics Ltd | Golledge Electronics Ltd |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | 22.57920 MHz GXO-7506L/A Ultra-L | 50.0 MHz GXO-7506L/A Ultra-Low J | 38.40MHZ GTXO-203T/ES SM TCXO +1 | 49.1520 MHz GXO-7506L/A Ultra-Lo |
| Series | Golledge Electronics Ltd | Golledge Electronics Ltd | Golledge Electronics Ltd | Golledge Electronics Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
