MP1-2Q-2R-1E-1N-1N-00

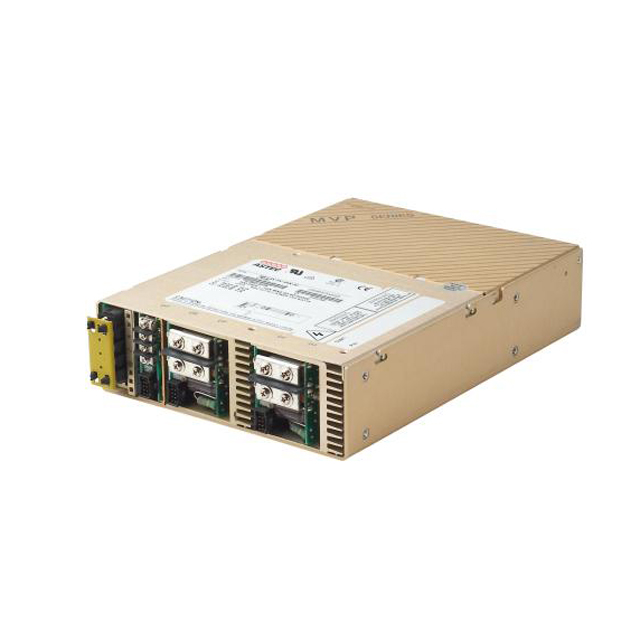

lmages are for reference only.MP1-2Q-2R-1E-1N-1N-00
ACDC CNVT 24V 28V 5V 2X15V 1200W
Datasheet-
33,650 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Enclosed AC DC Converters 5 Output 24V 28V 5V 15V 85 ~ 264 VAC, 120 ~ 300 VDC Input
MP1-2Q-2R-1E-1N-1N-00
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | MP1 (1200W) |
| Packaging | Bulk |
| RoHS Status | |
| Type | Enclosed |
| Number of Outputs | 5 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 300 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | 28V |
| Voltage - Output 3 | 5V |
| Voltage - Output 4 | 15V |
| Voltage - Output 6 | - |
| Current - Output 1 | 15 A |
| Current - Output 2 | 12.8 A |
| Current - Output 3 | 35 A |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | - |
| Efficiency | 85% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 11.00" L x 8.00" W x 2.50" H (279.4mm x 203.2mm x 63.5mm) |
| Approval Agency | CB, CE, CSA, UL, VDE |
| Minimum Load Required | - |
| Voltage - Output 5 | 15V |
| Current - Output 4 | 14 A |
| Current - Output 5 | 14 A |
| Power (Watts) | 1200W |
| Features | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input |
| Standard Number | - |
| Base Product Number | - |
| Current - Output 6 | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MP1-2Q-2R-1E-1N-00 | MP1-2Q-1B-1E-1N-1N-00 | MP1-2Q-1D-1E-1O-1O-4LL-00 | MP1-2Q-1D-1E-1Q-1Q-4EE-00 |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy |
| RoHS Status | ||||
| Description | AC/DC CNVRT 24V 28V 5V 15V 1200W | AC/DC CNVT 24V 2.2V 5V 2X15V | ACDC CNV 24V 3.3V 5V 18V 24V 18V | AC/DC CNVT 24V 3.3V 5V 3X24V |
| Series | MP1 (1200W) | MP1 (1200W) | MP1 (1200W) | MP1 (1200W) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
