MP11471
lmages are for reference only.MP11471
806.0 MHZ GSRF TA2041C SAW FLTER
Datasheet5-SMD, No Lead
93,960 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
806MHz Frequency RF SAW Filter (Surface Acoustic Wave) 2.7dB 30MHz Bandwidth 5-SMD, No Lead
MP11471
| Category | Filters - SAW Filters - |
| Manufacturer | Golledge Electronics Ltd |
| Series | GSRF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Bandwidth | 30MHz |
| Insertion Loss | 2.7dB |
| Ratings | - |
| Applications | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Height (Max) | 0.020" (0.50mm) |
| Size / Dimension | 0.043" L x 0.035" W (1.10mm x 0.90mm) |
| Frequency - Center | 806MHz |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

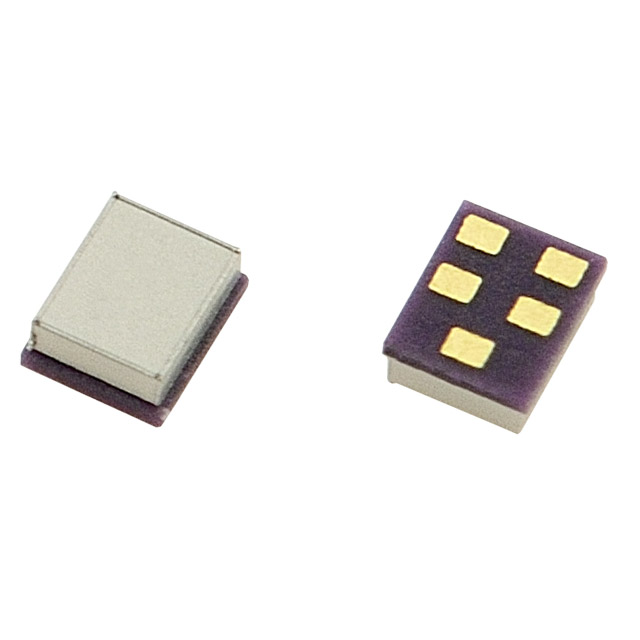

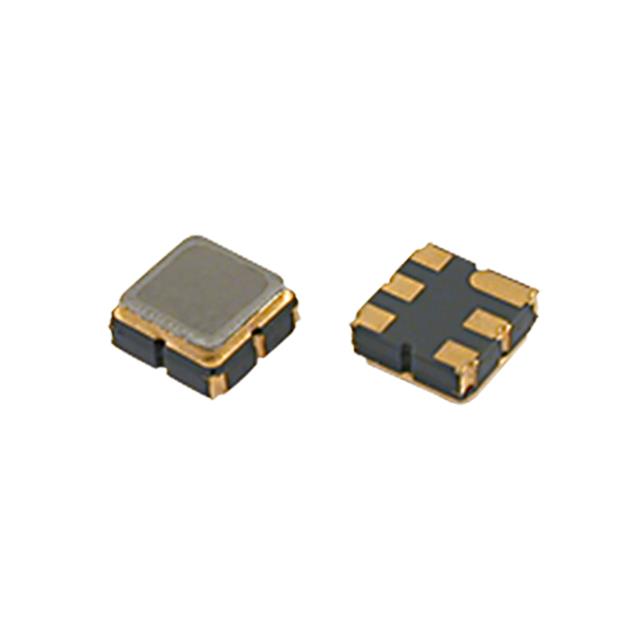

| Part Number | MP11470 | MP11472 | MP11473 | MP11131 |
| Manufacturer | Golledge Electronics Ltd | Golledge Electronics Ltd | Golledge Electronics Ltd | Golledge Electronics Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | 942.50 MHZ GSRF TA1839B SAW FILT | 1234.40 MHZ GSRF TA1925A SAW FIL | 1209.50 MHZ GSRF TA1106B SAW FIL | 1227.60 MHz GSRF TA2028A SAW Fil |
| Series | GSRF | GSRF | GSRF | GSRF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
