MP2496GR-P

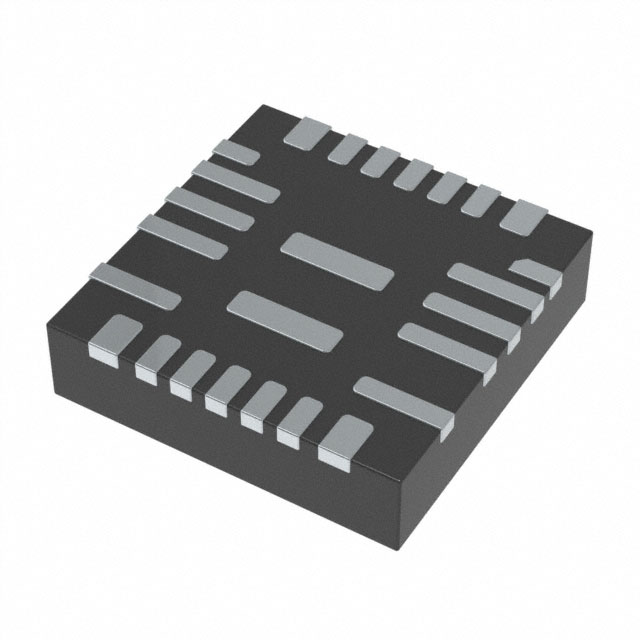

lmages are for reference only.MP2496GR-P
2.5A, 36V, FREQUENCY SELECTABLE
Datasheet26-PowerVFQFN
33,056 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 5V 2.5A 7V - 36V Input
MP2496GR-P
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | MP2496 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 26-PowerVFQFN |
| Size / Dimension | 0.16" L x 0.16" W x 0.04" H (4.0mm x 4.0mm x 1.0mm) |
| Supplier Device Package | 26-QFN (4x4) |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute | |
 |
 |
|
| Part Number | MP2496GR-Z | MP2496MGR-P | MP2496MGR-Z | 4AA12-P4-25PPM-M-E |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2.5A, 36V, FREQUENCY SELECTABLE | DC DC CONVERTER | DC DC CONVERTER 5V | DC/DC CONVERTER |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | ULTRAVOLT / Advanced Energy |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
