MP3394ES-LF-Z

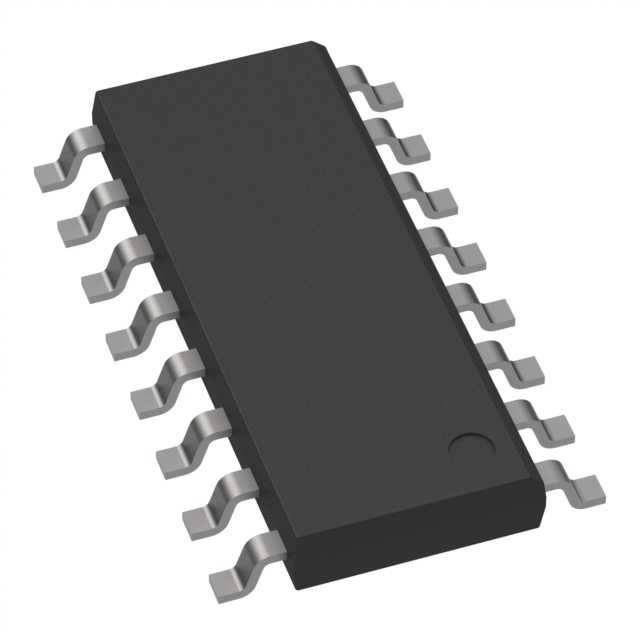

lmages are for reference only.MP3394ES-LF-Z
IC LED DRV CTRL PWM 200MA 16SOIC
Datasheet16-SOIC (0.154", 3.90mm Width)
83,253 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 4 Output DC DC Controller Step-Up (Boost) PWM Dimming 200mA 16-SOIC
MP3394ES-LF-Z
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Controller |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 5V |
| Voltage - Supply (Max) | 28V |
| Voltage - Output | - |
| Current - Output / Channel | 200mA |
| Frequency | 540kHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MP3394 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MP3394ES-LF | MP3394ES-LF-P | MP3394EF-LF | MP3394EF-LF-P |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRV CTRL PWM 200MA 16SOIC | FOR NEW DESIGNS, RECOMMEND MP339 | IC LED DRVR CTRLR PWM 16TSSOP | FOR NEW DESIGNS, RECOMMEND MP339 |
| Series | - | MP | - | MP |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
