MP3425DL-LF-Z
lmages are for reference only.MP3425DL-LF-Z
IC REG BOOST ADJ 3A 14QFN
Datasheet14-VFDFN Exposed Pad
33,035 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost Switching Regulator IC Positive Adjustable 3.1V 1 Output 3A (Switch) 14-VFDFN Exposed Pad
MP3425DL-LF-Z
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.1V |
| Voltage - Input (Max) | 22V |
| Voltage - Output (Min/Fixed) | 3.1V |
| Voltage - Output (Max) | 55V (Switch) |
| Current - Output | 3A (Switch) |
| Frequency - Switching | 300kHz ~ 2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFDFN Exposed Pad |
| Supplier Device Package | 14-QFN (3x4) |
| Base Product Number | MP3425 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

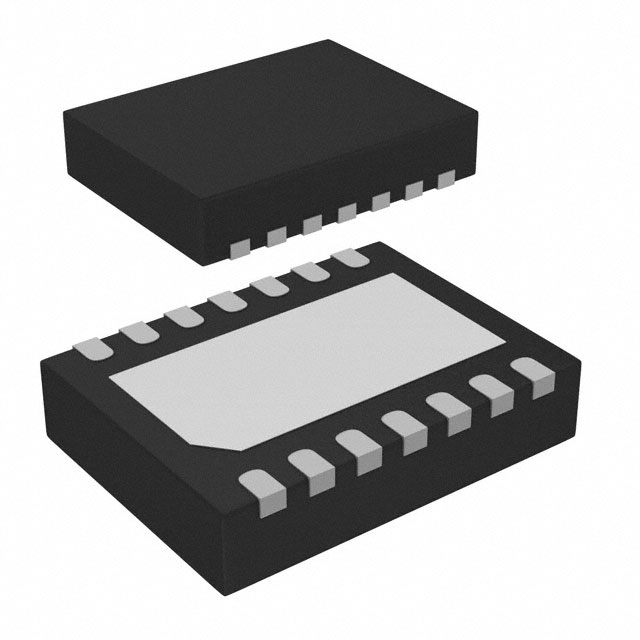

| Part Number | MP3425DL-LF-P | MP3115DT-LF-P | MP3115DT-LF-Z | MP3120DJ-LF-P |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG BOOST ADJ 3A 14QFN | IC REG BOOST ADJ 200MA SOT23-6 | IC REG BOOST ADJ 200MA SOT23-6 | IC REG BOOST ADJ 1.2A TSOT23-6 |
| Series | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
