MP6501AGF-Z

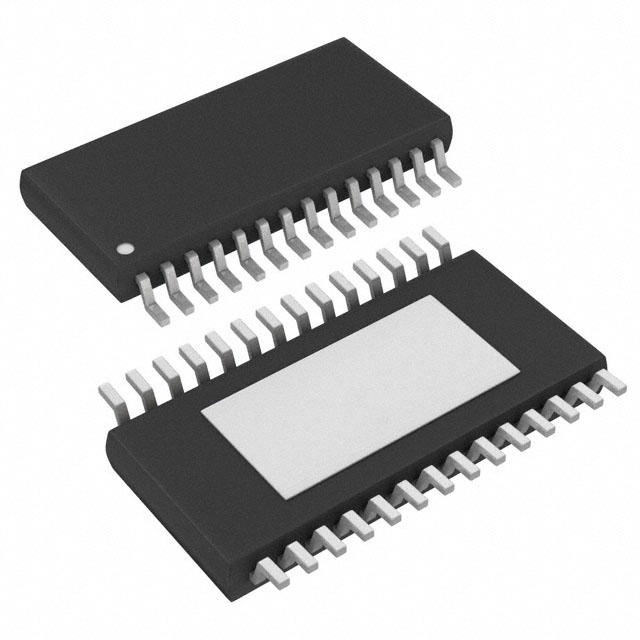

lmages are for reference only.MP6501AGF-Z
IC MTR DRV BIPOLAR 8-35V 28TSSOP
Datasheet28-TSSOP (0.173", 4.40mm Width) Exposed Pad
24,211 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar Motor Driver Power MOSFET Logic 28-TSSOP-EP
MP6501AGF-Z
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Logic |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4, 1/8 |
| Applications | Printer |
| Current - Output | 2.5A |
| Voltage - Supply | 8V ~ 35V |
| Voltage - Load | 3.3V, 5V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-TSSOP-EP |
| Base Product Number | MP6501 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | MP6501AGF-P | MP6501AGF-P | MP6501AGF-Z | MP6501AGF |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 8.5V TO 35VIN, 2.5A STEPPER MOTO | 8.5V TO 35VIN, 2.5A STEPPER MOTO | IC MTR DRV BIPOLAR 8-35V 28TSSOP | IC MTR DRV BIPOLAR 8-35V 28TSSOP |
| Series | MP | MP | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
