MP6509GF-Z

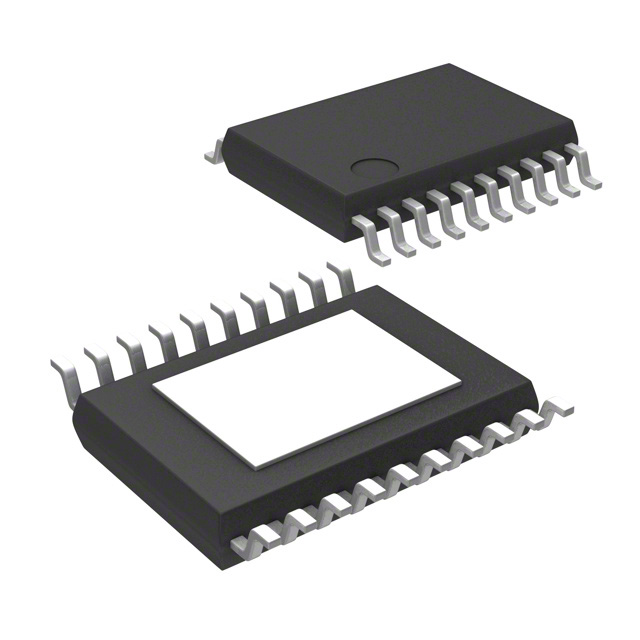

lmages are for reference only.MP6509GF-Z
IC MTR DRV BIPLR 2.7-18V 20TSSOP
Datasheet20-TSSOP (0.173", 4.40mm Width) Exposed Pad
24,493 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar Motor Driver Power MOSFET Parallel 20-TSSOP-EP
MP6509GF-Z
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2 |
| Applications | General Purpose |
| Current - Output | 1.2A |
| Voltage - Supply | 2.7V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Base Product Number | MP6509 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | MP6509GF-P | MP6509GF-P | MP6509GF-Z | MP6509GF |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2.7V-18V, 1.2A, STEPPER MOTOR DR | 2.7V-18V, 1.2A, STEPPER MOTOR DR | IC MTR DRV BIPLR 2.7-18V 20TSSOP | IC MTR DRV BIPLR 2.7-18V 20TSSOP |
| Series | MP | MP | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
