MP6543AGL-P

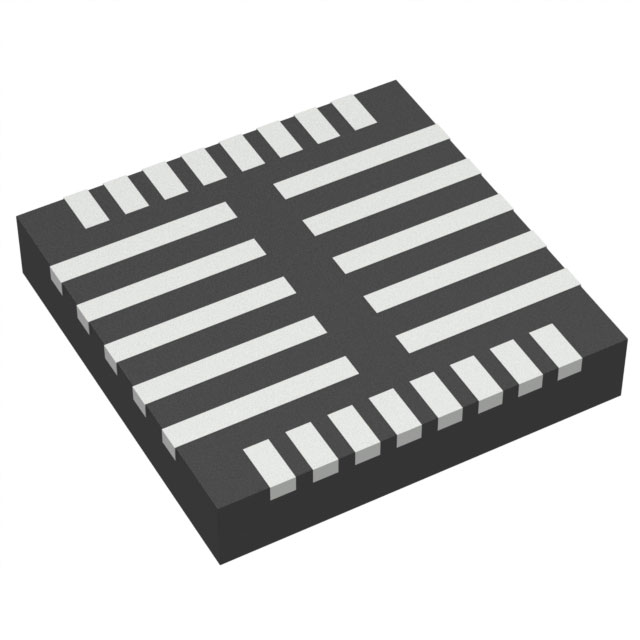

lmages are for reference only.MP6543AGL-P
12V, 2A, THREE-PHASE POWER STAGE
Datasheet24-VFQFN Exposed Pad
82,435 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Multiphase Motor Driver NMOS PWM 24-QFN (3x4)
MP6543AGL-P
| Category | Integrated Circuits (ICs) - Power Management PMIC - Motor Drivers-Controllers |
| Manufacturer | Monolithic Power Systems Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | Brushless DC (BLDC) |
| Current - Output | 2A |
| Voltage - Supply | 3V ~ 12V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (3x4) |
| Base Product Number | MP6543 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | MP6543AGL-P | MP6543AGL-Z | MP6543AGL-Z | MP6540AGU-P |
| Manufacturer | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. | Monolithic Power Systems Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 12V, 2A, THREE-PHASE POWER STAGE | 12V, 2A, THREE-PHASE POWER STAGE | 12V, 2A, THREE-PHASE POWER STAGE | 29V 3A THREE-PHASE POWER STAGE W |
| Series | - | - | - | MP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
